Bending For Life: | Above 5,000,000 Times | Properties: | Oil Resistance, Cool Resistance,abrasion Resistance, Flame Resistance, Anti-ultravoiolet |
---|---|---|---|
Insulation: | Special PVC | Jacket: | Special PVC |
Installation: | Movable |

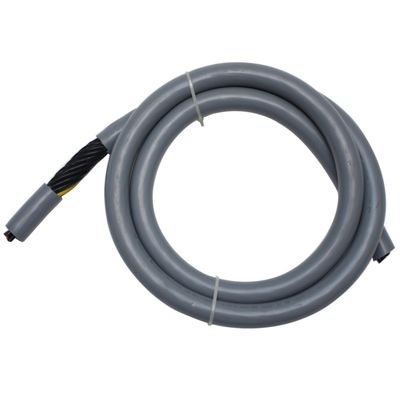

Flexible Drag Chain Cable
Resistance to bend PUR Drag Chain Cable
Applications:
It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.
Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 5, 000, 000 times
Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: Special PVC
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: Special PVC
Black (RAL9005) or grey (RAL7001)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V
Temperature range:
Fixed Installation: -50 Celsuis degree----90 Celsuis degree
Flexing Installation: -30 Celsuis degree----90 Celsuis degree
The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD
TYPE | SIZE | CONDUCTOR | |
EKM71100 | O.1*2C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*3C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*4C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*5C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*6C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*7C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*8C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*9C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*1OC | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*11C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*12C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*13C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*14C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*15C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*16C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*17C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*18C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*19C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*2OC | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*21C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*22C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*23C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*24C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*25C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*26C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*27C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*28C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*29C | 20/0.08CU+2/0.1steel | |
EKM71100 | O.1*3OC | 20/0.08CU+2/0.1steel | |
EKM71100 | 0.14*2C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*3C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*4C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*5C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*6C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*7C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*8C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*9C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*1OC | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*11C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*12C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*13C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*14C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*15C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*16C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*17C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*18C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*19C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*2OC | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*21C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*22C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*23C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*24C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*25C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*26C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*27C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*28C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*29C | 28/0.08CU+2/0.1steel | |
EKM71100 | 0.14*3OC | 28/0.08CU+2/0.1steel | |
EKM71100 | O.2*2C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*3C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*4C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*5C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*6C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*7C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*8C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*9C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*1OC | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*11C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*12C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*13C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*14C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*15C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*16C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*17C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*18C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*19C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*2OC | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*21C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*22C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*23C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*24C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*25C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*26C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*27C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*28C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*29C | 40/0.08CU+2/0.1steel | |
EKM71100 | O.2*3OC | 40/0.08CU+2/0.1steel | |
EKM71100 | O.25*2C | 50 | 0.08 |
EKM71100 | O.25*3C | 50 | 0.08 |
EKM71100 | O.25*4C | 50 | 0.08 |
EKM71100 | O.25*5C | 50 | 0.08 |
EKM71100 | O.25*6C | 50 | 0.08 |
EKM71100 | O.25*7C | 50 | 0.08 |
EKM71100 | O.25*8C | 50 | 0.08 |
EKM71100 | O.25*9C | 50 | 0.08 |
EKM71100 | O.25*1OC | 50 | 0.08 |
EKM71100 | O.25*11C | 50 | 0.08 |
EKM71100 | O.25*12C | 50 | 0.08 |
EKM71100 | O.25*13C | 50 | 0.08 |
EKM71100 | O.25*14C | 50 | 0.08 |
EKM71100 | O.25*15C | 50 | 0.08 |
EKM71100 | O.25*16C | 50 | 0.08 |
EKM71100 | O.25*17C | 50 | 0.08 |
EKM71100 | O.25*18C | 50 | 0.08 |
EKM71100 | O.25*19C | 50 | 0.08 |
EKM71100 | O.25*2OC | 50 | 0.08 |
EKM71100 | O.25*21C | 50 | 0.08 |
EKM71100 | O.25*22C | 50 | 0.08 |
EKM71100 | O.25*23C | 50 | 0.08 |
EKM71100 | O.25*24C | 50 | 0.08 |
EKM71100 | O.25*25C | 50 | 0.08 |
EKM71100 | O.25*26C | 50 | 0.08 |
EKM71100 | O.25*27C | 50 | 0.08 |
EKM71100 | O.25*28C | 50 | 0.08 |
EKM71100 | O.25*29C | 50 | 0.08 |
EKM71100 | O.25*3OC | 50 | 0.08 |
EKM71100 | O.3*2C | 60 | 0.08 |
EKM71100 | O.3*3C | 60 | 0.08 |
EKM71100 | O.3*4C | 60 | 0.08 |
EKM71100 | O.3*5C | 60 | 0.08 |
EKM71100 | O.3*6C | 60 | 0.08 |
EKM71100 | O.3*7C | 60 | 0.08 |
EKM71100 | O.3*8C | 60 | 0.08 |
EKM71100 | O.3*9C | 60 | 0.08 |
EKM71100 | O.3*1OC | 60 | 0.08 |
EKM71100 | O.3*11C | 60 | 0.08 |
EKM71100 | O.3*12C | 60 | 0.08 |
EKM71100 | O.3*13C | 60 | 0.08 |
EKM71100 | O.3*14C | 60 | 0.08 |
EKM71100 | O.3*15C | 60 | 0.08 |
EKM71100 | O.3*16C | 60 | 0.08 |
EKM71100 | O.3*17C | 60 | 0.08 |
EKM71100 | O.3*18C | 60 | 0.08 |
EKM71100 | O.3*19C | 60 | 0.08 |
EKM71100 | O.3*2OC | 60 | 0.08 |
EKM71100 | O.3*21C | 60 | 0.08 |
EKM71100 | O.3*22C | 60 | 0.08 |
EKM71100 | O.3*23C | 60 | 0.08 |
EKM71100 | O.3*24C | 60 | 0.08 |
EKM71100 | O.3*25C | 60 | 0.08 |
EKM71100 | O.3*26C | 60 | 0.08 |
EKM71100 | O.3*27C | 60 | 0.08 |
EKM71100 | O.3*28C | 60 | 0.08 |
EKM71100 | O.3*29C | 60 | 0.08 |
EKM71100 | O.3*3OC | 60 | 0.08 |
EKM71100 | 0.34*2C | 68 | 0.08 |
EKM71100 | 0.34*3C | 68 | 0.08 |
EKM71100 | 0.34*4C | 68 | 0.08 |
EKM71100 | 0.34*5C | 68 | 0.08 |
EKM71100 | 0.34*6C | 68 | 0.08 |
EKM71100 | 0.34*7C | 68 | 0.08 |
EKM71100 | 0.34*8C | 68 | 0.08 |
EKM71100 | 0.34*9C | 68 | 0.08 |
EKM71100 | 0.34*10C | 68 | 0.08 |
EKM71100 | 0.34*11C | 68 | 0.08 |
EKM71100 | 0.34*12C | 68 | 0.08 |
EKM71100 | 0.34*13C | 68 | 0.08 |
EKM71100 | 0.34*14C | 68 | 0.08 |
EKM71100 | 0.34*15C | 68 | 0.08 |
EKM71100 | 0.34*16C | 68 | 0.08 |
EKM71100 | 0.34*17C | 68 | 0.08 |
EKM71100 | 0.34*18C | 68 | 0.08 |
EKM71100 | 0.34*19C | 68 | 0.08 |
EKM71100 | 0.34*20C | 68 | 0.08 |
EKM71100 | 0.34*21C | 68 | 0.08 |
EKM71100 | 0.34*22C | 68 | 0.08 |
EKM71100 | 0.34*23C | 68 | 0.08 |
EKM71100 | 0.34*24C | 68 | 0.08 |
EKM71100 | 0.34*25C | 68 | 0.08 |
EKM71100 | 0.34*26C | 68 | 0.08 |
EKM71100 | 0.34*27C | 68 | 0.08 |
EKM71100 | 0.34*28C | 68 | 0.08 |
EKM71100 | 0.34*29C | 68 | 0.08 |
EKM71100 | 0.34*30C | 68 | 0.08 |
EKM71100 | 0.34*31C | 68 | 0.08 |
EKM71100 | 0.34*32C | 68 | 0.08 |
EKM71100 | 0.34*33C | 68 | 0.08 |
EKM71100 | 0.34*34C | 68 | 0.08 |
EKM71100 | 0.34*35C | 68 | 0.08 |
EKM71100 | 0.34*36C | 68 | 0.08 |
EKM71100 | O.4*2C | 80 | 0.08 |
EKM71100 | O.4*3C | 80 | 0.08 |
EKM71100 | O.4*4C | 80 | 0.08 |
EKM71100 | O.4*5C | 80 | 0.08 |
EKM71100 | O.4*6C | 80 | 0.08 |
EKM71100 | O.4*7C | 80 | 0.08 |
EKM71100 | O.4*8C | 80 | 0.08 |
EKM71100 | O.4*9C | 80 | 0.08 |
EKM71100 | O.4*1OC | 80 | 0.08 |
EKM71100 | O.4*11C | 80 | 0.08 |
EKM71100 | O.4*12C | 80 | 0.08 |
EKM71100 | O.4*13C | 80 | 0.08 |
EKM71100 | O.4*14C | 80 | 0.08 |
EKM71100 | O.4*15C | 80 | 0.08 |
EKM71100 | O.4*16C | 80 | 0.08 |
EKM71100 | O.4*17C | 80 | 0.08 |
EKM71100 | O.4*18C | 80 | 0.08 |
EKM71100 | O.4*19C | 80 | 0.08 |
EKM71100 | O.4*2OC | 80 | 0.08 |
EKM71100 | O.4*21C | 80 | 0.08 |
EKM71100 | O.4*22C | 80 | 0.08 |
EKM71100 | O.4*23C | 80 | 0.08 |
EKM71100 | O.4*24C | 80 | 0.08 |
EKM71100 | O.4*25C | 80 | 0.08 |
EKM71100 | O.4*26C | 80 | 0.08 |
EKM71100 | O.4*27C | 80 | 0.08 |
EKM71100 | O.4*28C | 80 | 0.08 |
EKM71100 | O.4*29C | 80 | 0.08 |
EKM71100 | O.4*3OC | 80 | 0.08 |
EKM71100 | O.5*2C | 64 | 0.1 |
EKM71100 | O.5*3C | 64 | 0.1 |
EKM71100 | O.5*4C | 64 | 0.1 |
EKM71100 | O.5*5C | 64 | 0.1 |
EKM71100 | O.5*6C | 64 | 0.1 |
EKM71100 | O.5*7C | 64 | 0.1 |
EKM71100 | O.5*8C | 64 | 0.1 |
EKM71100 | O.5*9C | 64 | 0.1 |
EKM71100 | O.5*1OC | 64 | 0.1 |
EKM71100 | O.5*11C | 64 | 0.1 |
EKM71100 | O.5*12C | 64 | 0.1 |
EKM71100 | O.5*13C | 64 | 0.1 |
EKM71100 | O.5*14C | 64 | 0.1 |
EKM71100 | O.5*15C | 64 | 0.1 |
EKM71100 | O.5*16C | 64 | 0.1 |
EKM71100 | O.5*17C | 64 | 0.1 |
EKM71100 | O.5*18C | 64 | 0.1 |
EKM71100 | O.5*19C | 64 | 0.1 |
EKM71100 | O.5*2OC | 64 | 0.1 |
EKM71100 | O.5*21C | 64 | 0.1 |
EKM71100 | O.5*22C | 64 | 0.1 |
EKM71100 | O.5*23C | 64 | 0.1 |
EKM71100 | O.5*24C | 64 | 0.1 |
EKM71100 | O.5*25C | 64 | 0.1 |
EKM71100 | O.5*26C | 64 | 0.1 |
EKM71100 | O.5*27C | 64 | 0.1 |
EKM71100 | O.5*28C | 64 | 0.1 |
EKM71100 | O.5*29C | 64 | 0.1 |
EKM71100 | O.5*3OC | 64 | 0.1 |
EKM71100 | O.75*2C | 96 | 0.1 |
EKM71100 | O.75*3C | 96 | 0.1 |
EKM71100 | O.75*4C | 96 | 0.1 |
EKM71100 | O.75*5C | 96 | 0.1 |
EKM71100 | O.75*6C | 96 | 0.1 |
EKM71100 | O.75*7C | 96 | 0.1 |
EKM71100 | O.75*8C | 96 | 0.1 |
EKM71100 | O.75*9C | 96 | 0.1 |
EKM71100 | O.75*1OC | 96 | 0.1 |
EKM71100 | O.75*11C | 96 | 0.1 |
EKM71100 | O.75*12C | 96 | 0.1 |
EKM71100 | O.75*13C | 96 | 0.1 |
EKM71100 | O.75*14C | 96 | 0.1 |
EKM71100 | O.75*15C | 96 | 0.1 |
EKM71100 | O.75*16C | 96 | 0.1 |
EKM71100 | O.75*17C | 96 | 0.1 |
EKM71100 | O.75*18C | 96 | 0.1 |
EKM71100 | O.75*19C | 96 | 0.1 |
EKM71100 | O.75*2OC | 96 | 0.1 |
EKM71100 | O.75*21C | 96 | 0.1 |
EKM71100 | O.75*22C | 96 | 0.1 |
EKM71100 | O.75*23C | 96 | 0.1 |
EKM71100 | O.75*24C | 96 | 0.1 |
EKM71100 | O.75*25C | 96 | 0.1 |
EKM71100 | O.75*26C | 96 | 0.1 |
EKM71100 | O.75*27C | 96 | 0.1 |
EKM71100 | O.75*28C | 96 | 0.1 |
EKM71100 | O.75*29C | 96 | 0.1 |
EKM71100 | O.75*3OC | 96 | 0.1 |
EKM71100 | 1.O*2C | 126 | 0.1 |
EKM71100 | 1.O*3C | 126 | 0.1 |
EKM71100 | 1.O*4C | 126 | 0.1 |
EKM71100 | 1.O*5C | 126 | 0.1 |
EKM71100 | 1.O*6C | 126 | 0.1 |
EKM71100 | 1.O*7C | 126 | 0.1 |
EKM71100 | 1.O*8C | 126 | 0.1 |
EKM71100 | 1.O*9C | 126 | 0.1 |
EKM71100 | 1.O*1OC | 126 | 0.1 |
EKM71100 | 1.O*11C | 126 | 0.1 |
EKM71100 | 1.O*12C | 126 | 0.1 |
EKM71100 | 1.O*13C | 126 | 0.1 |
EKM71100 | 1.O*14C | 126 | 0.1 |
EKM71100 | 1.O*15C | 126 | 0.1 |
EKM71100 | 1.O*16C | 126 | 0.1 |
EKM71100 | 1.O*17C | 126 | 0.1 |
EKM71100 | 1.O*18C | 126 | 0.1 |
EKM71100 | 1.O*19C | 126 | 0.1 |
EKM71100 | 1.O*2OC | 126 | 0.1 |
EKM71100 | 1.O*21C | 126 | 0.1 |
EKM71100 | 1.O*22C | 126 | 0.1 |
EKM71100 | 1.O*23C | 126 | 0.1 |
EKM71100 | 1.O*24C | 126 | 0.1 |
EKM71100 | 1.O*25C | 126 | 0.1 |
EKM71100 | 1.O*26C | 126 | 0.1 |
EKM71100 | 1.O*27C | 126 | 0.1 |
EKM71100 | 1.O*28C | 126 | 0.1 |
EKM71100 | 1.O*29C | 126 | 0.1 |
EKM71100 | 1.O*3OC | 126 | 0.1 |
EKM71100 | 1.5*2C | 189 | 0.1 |
EKM71100 | 1.5*3C | 189 | 0.1 |
EKM71100 | 1.5*4C | 189 | 0.1 |
EKM71100 | 1.5*5C | 189 | 0.1 |
EKM71100 | 1.5*6C | 189 | 0.1 |
EKM71100 | 1.5*7C | 189 | 0.1 |
EKM71100 | 1.5*8C | 189 | 0.1 |
EKM71100 | 1.5*9C | 189 | 0.1 |
EKM71100 | 1.5*10C | 189 | 0.1 |
EKM71100 | 1.5*11C | 189 | 0.1 |
EKM71100 | 1.5*12C | 189 | 0.1 |
EKM71100 | 1.5*13C | 189 | 0.1 |
EKM71100 | 1.5*14C | 189 | 0.1 |
EKM71100 | 1.5*15C | 189 | 0.1 |
EKM71100 | 1.5*16C | 189 | 0.1 |
EKM71100 | 1.5*17C | 189 | 0.1 |
EKM71100 | 1.5*18C | 189 | 0.1 |
EKM71100 | 1.5*19C | 189 | 0.1 |
EKM71100 | 1.5*20C | 189 | 0.1 |
EKM71100 | 1.5*21C | 189 | 0.1 |
EKM71100 | 1.5*22C | 189 | 0.1 |
EKM71100 | 1.5*23C | 189 | 0.1 |
EKM71100 | 1.5*24C | 189 | 0.1 |
EKM71100 | 1.5*25C | 189 | 0.1 |
EKM71100 | 1.5*26C | 189 | 0.1 |
EKM71100 | 1.5*27C | 189 | 0.1 |
EKM71100 | 1.5*28C | 189 | 0.1 |
EKM71100 | 1.5*29C | 189 | 0.1 |
EKM71100 | 1.5*30C | 189 | 0.1 |
EKM71100 | 2.O*2C | 255 | 0.1 |
EKM71100 | 2.O*3C | 255 | 0.1 |
EKM71100 | 2.O*4C | 255 | 0.1 |
EKM71100 | 2.O*5C | 255 | 0.1 |
EKM71100 | 2.O*6C | 255 | 0.1 |
EKM71100 | 2.O*7C | 255 | 0.1 |
EKM71100 | 2.O*8C | 255 | 0.1 |
EKM71100 | 2.O*9C | 255 | 0.1 |
EKM71100 | 2.O*1OC | 255 | 0.1 |
EKM71100 | 2.O*11C | 255 | 0.1 |
EKM71100 | 2.O*12C | 255 | 0.1 |
EKM71100 | 2.O*13C | 255 | 0.1 |
EKM71100 | 2.O*14C | 255 | 0.1 |
EKM71100 | 2.O*15C | 255 | 0.1 |
EKM71100 | 2.O*16C | 255 | 0.1 |
EKM71100 | 2.O*17C | 255 | 0.1 |
EKM71100 | 2.O*18C | 255 | 0.1 |
EKM71100 | 2.O*19C | 255 | 0.1 |
EKM71100 | 2.O*2OC | 255 | 0.1 |
EKM71100 | 2.O*21C | 255 | 0.1 |
EKM71100 | 2.O*22C | 255 | 0.1 |
EKM71100 | 2.O*23C | 255 | 0.1 |
EKM71100 | 2.O*24C | 255 | 0.1 |
EKM71100 | 2.O*25C | 255 | 0.1 |
EKM71100 | 2.O*26C | 255 | 0.1 |
EKM71100 | 2.O*27C | 255 | 0.1 |
EKM71100 | 2.O*28C | 255 | 0.1 |
EKM71100 | 2.O*29C | 255 | 0.1 |
EKM71100 | 2.O*3OC | 255 | 0.1 |
EKM71100 | 2.5*2C | 161 | 0.14 |
EKM71100 | 2.5*3C | 161 | 0.14 |
EKM71100 | 2.5*4C | 161 | 0.14 |
EKM71100 | 2.5*5C | 161 | 0.14 |
EKM71100 | 2.5*6C | 161 | 0.14 |
EKM71100 | 2.5*7C | 161 | 0.14 |
EKM71100 | 2.5*8C | 161 | 0.14 |
EKM71100 | 2.5*9C | 161 | 0.14 |
EKM71100 | 2.5*10C | 161 | 0.14 |
EKM71100 | 2.5*11C | 161 | 0.14 |
EKM71100 | 2.5*12C | 161 | 0.14 |
EKM71100 | 2.5*13C | 161 | 0.14 |
EKM71100 | 2.5*14C | 161 | 0.14 |
EKM71100 | 2.5*15C | 161 | 0.14 |
EKM71100 | 2.5*16C | 161 | 0.14 |
EKM71100 | 2.5*17C | 161 | 0.14 |
EKM71100 | 2.5*18C | 161 | 0.14 |
EKM71100 | 2.5*19C | 161 | 0.14 |
EKM71100 | 2.5*20C | 161 | 0.14 |
EKM71100 | 2.5*21C | 161 | 0.14 |
EKM71100 | 2.5*22C | 161 | 0.14 |
EKM71100 | 2.5*23C | 161 | 0.14 |
EKM71100 | 2.5*24C | 161 | 0.14 |
EKM71100 | 2.5*25C | 161 | 0.14 |
EKM71100 | 2.5*26C | 161 | 0.14 |
EKM71100 | 2.5*27C | 161 | 0.14 |
EKM71100 | 2.5*28C | 161 | 0.14 |
EKM71100 | 2.5*29C | 161 | 0.14 |
EKM71100 | 2.5*30C | 161 | 0.14 |
EKM71100 | 4.O*2C | 259 | 0.14 |
EKM71100 | 4.O*3C | 259 | 0.14 |
EKM71100 | 4.O*4C | 259 | 0.14 |
EKM71100 | 4.O*5C | 259 | 0.14 |
EKM71100 | 4.O*6C | 259 | 0.14 |
EKM71100 | 4.O*7C | 259 | 0.14 |
EKM71100 | 4.O*8C | 259 | 0.14 |
EKM71100 | 4.O*9C | 259 | 0.14 |
EKM71100 | 4.O*1OC | 259 | 0.14 |
EKM71100 | 4.O*11C | 259 | 0.14 |
EKM71100 | 4.O*12C | 259 | 0.14 |
EKM71100 | 4.O*13C | 259 | 0.14 |
EKM71100 | 4.O*14C | 259 | 0.14 |
EKM71100 | 4.O*15C | 259 | 0.14 |
EKM71100 | 4.O*16C | 259 | 0.14 |
EKM71100 | 4.O*17C | 259 | 0.14 |
EKM71100 | 4.O*18C | 259 | 0.14 |
EKM71100 | 4.O*19C | 259 | 0.14 |
EKM71100 | 4.O*2OC | 259 | 0.14 |
EKM71100 | 4.O*21C | 259 | 0.14 |
EKM71100 | 4.O*22C | 259 | 0.14 |
EKM71100 | 4.O*23C | 259 | 0.14 |
EKM71100 | 4.O*24C | 259 | 0.14 |
EKM71100 | 4.O*25C | 259 | 0.14 |
EKM71100 | 4.O*26C | 259 | 0.14 |
EKM71100 | 4.O*27C | 259 | 0.14 |
EKM71100 | 4.O*28C | 259 | 0.14 |
EKM71100 | 4.O*29C | 259 | 0.14 |
EKM71100 | 4.O*3OC | 259 | 0.14 |
EKM71100 | 6.O*2C | 390 | 0.14 |
EKM71100 | 6.O*3C | 390 | 0.14 |
EKM71100 | 6.O*4C | 390 | 0.14 |
EKM71100 | 6.O*5C | 390 | 0.14 |
EKM71100 | 6.O*6C | 390 | 0.14 |
EKM71100 | 6.O*7C | 390 | 0.14 |
EKM71100 | 6.O*8C | 390 | 0.14 |
EKM71100 | 6.O*9C | 390 | 0.14 |
EKM71100 | 6.O*1OC | 390 | 0.14 |
EKM71100 | 6.O*11C | 390 | 0.14 |
EKM71100 | 6.O*12C | 390 | 0.14 |
EKM71100 | 6.O*13C | 390 | 0.14 |
EKM71100 | 6.O*14C | 390 | 0.14 |
EKM71100 | 6.O*15C | 390 | 0.14 |
EKM71100 | 6.O*16C | 390 | 0.14 |
EKM71100 | 6.O*17C | 390 | 0.14 |
EKM71100 | 6.O*18C | 390 | 0.14 |
EKM71100 | 6.O*19C | 390 | 0.14 |
EKM71100 | 6.O*2OC | 390 | 0.14 |
EKM71100 | 6.O*21C | 390 | 0.14 |
EKM71100 | 6.O*22C | 390 | 0.14 |
EKM71100 | 6.O*23C | 390 | 0.14 |
EKM71100 | 6.O*24C | 390 | 0.14 |
EKM71100 | 6.O*25C | 390 | 0.14 |
EKM71100 | 6.O*26C | 390 | 0.14 |
EKM71100 | 6.O*27C | 390 | 0.14 |
EKM71100 | 6.O*28C | 390 | 0.14 |
EKM71100 | 6.O*29C | 390 | 0.14 |
EKM71100 | 6.O*3OC | 390 | 0.14 |
EKM71100 | 8.0*2C | 520 | 0.14 |
EKM71100 | 8.0*3C | 520 | 0.14 |
EKM71100 | 8.0*4C | 520 | 0.14 |
EKM71100 | 8.0*5C | 520 | 0.14 |
EKM71100 | 8.0*6C | 520 | 0.14 |
EKM71100 | 8.0*7C | 520 | 0.14 |
EKM71100 | 8.0*8C | 520 | 0.14 |
EKM71100 | 8.0*9C | 520 | 0.14 |
EKM71100 | 8.0*10C | 520 | 0.14 |
EKM71100 | 10.0*2C | 353 | 0.19 |
EKM71100 | 10.0*3C | 353 | 0.19 |
EKM71100 | 10.0*4C | 353 | 0.19 |
EKM71100 | 10.0*5C | 353 | 0.19 |
EKM71100 | 10.0*6C | 353 | 0.19 |
EKM71100 | 10.0*7C | 353 | 0.19 |
EKM71100 | 10.0*8C | 353 | 0.19 |
EKM71100 | 10.0*9C | 353 | 0.19 |
EKM71100 | 10.0*10C | 353 | 0.19 |
EKM71100 | 16.0*2C | 567 | 0.19 |
EKM71100 | 16.0*3C | 567 | 0.19 |
EKM71100 | 16.0*4C | 567 | 0.19 |
EKM71100 | 16.0*5C | 567 | 0.19 |
EKM71100 | 16.0*6C | 567 | 0.19 |
EKM71100 | 16.0*7C | 567 | 0.19 |
EKM71100 | 25.0*2C | 882 | 0.19 |
EKM71100 | 25.0*3C | 882 | 0.19 |
EKM71100 | 25.0*4C | 882 | 0.19 |
EKM71100 | 25.0*5C | 882 | 0.19 |
EKM71100 | 35.0*2C | 1234 | 0.19 |
EKM71100 | 35.0*3C | 1234 | 0.19 |
EKM71100 | 35.0*4C | 1234 | 0.19 |
EKM71100 | 35.0*5C | 1234 | 0.19 |
