Color: | Orange | Voltage: | 300/500V |
---|---|---|---|
Installation: | Flexible | Insulation: | PVC |
Jacket: | Flexible PVC |
Flat Travelling Cables, Flat Elevator Cables (TVVB, H05VVH6-F, H07VVH6-F)
Flat traveling cables
Flat elevator cables
H05VVH6-F
H07VVH6-F
Flat traveling cables application:

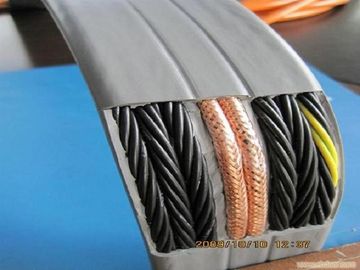

As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Flat traveling cables Properties:
Outer sheath is extensively resistant to oil and cooling liquid.
Standards: GB5023.6, IEC60227-6, EN 50214
Structure:
Conductor: Fine strands of bare copper wire,
Acc. To VDE0295 CLASS5
Insulation: Special PVC
Colour: Yellow, white, orangeg with black number with white digital coding
Bearing: Steel rope
Outer sheath: Flexible PVC, cold resistance, flame resistance
Colour: Grey(RAL7001)
Technical data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m
Burning vertically test: GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions. The temperature of conductor is lower than 70ºC
Temperature range:
-15ºC to 70ºC
TVVB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.
Product Name | Specification | Width(mm) | Thickness(mm) | Weight (kg/km) | Struction |

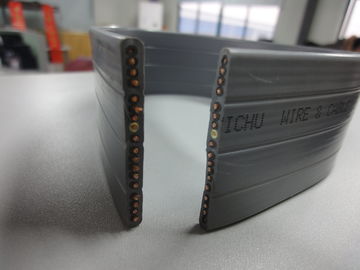

H05VVH6-F | 2C0.5mm2 | 7.3± 1.0 | 4.1± 0.5 | 55 | Straight line |
H05VVH6-F | 3C0.5mm2 | 9.3± 1.0 | 4.1± 0.5 | 71 | Straight line |
H05VVH6-F | 4C0.5mm2 | 12.3± 1.0 | 4.1± 0.5 | 93 | Straight line |
H05VVH6-F | 5C0.5mm2 | 15.2± 1.0 | 4.1± 0.5 | 114 | Straight line |
H05VVH6-F | 6C0.5mm2 | 17.2± 1.0 | 4.1± 0.5 | 130 | Straight line |
H05VVH6-F | 7C0.5mm2 | 19.2± 1.0 | 4.1± 0.5 | 146 | Straight line |
H05VVH6-F | 8C0.5mm2 | 21.2± 1.5 | 4.1± 0.5 | 162 | Straight line |
H05VVH6-F | 9C0.5mm2 | 23.2± 1.5 | 4.1± 0.5 | 178 | Straight line |
H05VVH6-F | 10C0.5mm2 | 25.2± 1.5 | 4.1± 0.5 | 194 | Straight line |
H05VVH6-F | 11C0.5mm2 | 27.2± 1.5 | 4.1± 0.5 | 210 | Straight line |
H05VVH6-F | 12C0.5mm2 | 29.2± 1.5 | 4.1± 0.5 | 226 | Straight line |
H05VVH6-F | 13C0.5mm2 | 31.2± 2.0 | 4.1± 0.5 | 242 | Straight line |
H05VVH6-F | 14C0.5mm2 | 34.2± 2.0 | 4.1± 0.5 | 263 | Straight line |
H05VVH6-F | 15C0.5mm2 | 36.2± 2.0 | 4.1± 0.5 | 279 | Straight line |
H05VVH6-F | 16C0.5mm2 | 38.2± 2.0 | 4.1± 0.5 | 295 | Straight line |
H05VVH6-F | 17C0.5mm2 | 40.2± 2.0 | 4.1± 0.5 | 311 | Straight line |
H05VVH6-F | 18C0.5mm2 | 43.1± 2.0 | 4.1± 0.5 | 332 | Straight line |
H05VVH6-F | 19C0.5mm2 | 45.1± 2.0 | 4.1± 0.5 | 348 | Straight line |
H05VVH6-F | 20C0.5mm2 | 47.1± 2.0 | 4.1± 0.5 | 364 | Straight line |
H05VVH6-F | 21C0.5mm2 | 49.1± 2.0 | 4.1± 0.5 | 380 | Straight line |
H05VVH6-F | 22C0.5mm2 | 51.1± 2.0 | 4.1± 0.5 | 396 | Straight line |
H05VVH6-F | 23C0.5mm2 | 53.1± 2.0 | 4.1± 0.5 | 412 | Straight line |
H05VVH6-F | 24C0.5mm2 | 56.1± 2.0 | 4.1± 0.5 | 434 | Straight line |

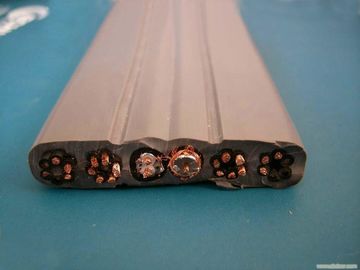

H05VVH6-F | 24C0.5mm2 | 31.3± 2.0 | 8.4± 0.5 | 428 | Bunch core |
H05VVH6-F | 30C0.5mm2 | 39.9± 2.0 | 7.8± 0.5 | 530 | Bunch core |
H05VVH6-F | 36C0.5mm2 | 43.5± 2.0 | 8.4± 0.5 | 628 | Bunch core |
H05VVH6-F | 40C0.5mm2 | 50.7± 2.0 | 7.8± 0.5 | 677 | Bunch core |
H05VVH6-F | 42C0.5mm2 | 49.5± 2.5 | 8.4± 0.5 | 717 | Bunch core |
H05VVH6-F | 48C0.5mm2 | 55.5± 2.5 | 8.4± 0.5 | 806 | Bunch core |
H05VVH6-F | 54C0.5mm2 | 61.5± 2.5 | 8.4± 0.5 | 895 | Bunch core |
H05VVH6-F | 60C0.5mm2 | 67.5± 2.5 | 8.4± 0.5 | 984 | Bunch core |
H05VVH6-F | 66C0.5mm2 | 73.5± 2.5 | 8.4± 0.5 | 1074 | Bunch core |
H05VVH6-F | 2C0.75mm2 | 8.0± 1.0 | 4.2± 0.5 | 68 | Straight line |
H05VVH6-F | 3C0.75mm2 | 10.4± 1.0 | 4.2± 0.5 | 90 | Straight line |
H05VVH6-F | 4C0.75mm2 | 13.7± 1.0 | 4.2± 0.5 | 118 | Straight line |
H05VVH6-F | 5C0.75mm2 | 17.1± 1.0 | 4.2± 0.5 | 145 | Straight line |
H05VVH6-F | 6C0.75mm2 | 19.4± 1.0 | 4.2± 0.5 | 167 | Straight line |
H05VVH6-F | 7C0.75mm2 | 21.8± 1.5 | 4.2± 0.5 | 188 | Straight line |
H05VVH6-F | 8C0.75mm2 | 24.1± 1.5 | 4.2± 0.5 | 210 | Straight line |
H05VVH6-F | 9C0.75mm2 | 26.5± 1.5 | 4.2± 0.5 | 231 | Straight line |
H05VVH6-F | 10C0.75mm2 | 28.8± 1.5 | 4.2± 0.5 | 253 | Straight line |
H05VVH6-F | 11C0.75mm2 | 31.2± 2.0 | 4.2± 0.5 | 274 | Straight line |
H05VVH6-F | 12C0.75mm2 | 33.5± 2.0 | 4.2± 0.5 | 277 | Straight line |
H05VVH6-F | 13C0.75mm2 | 35.9± 2.0 | 4.2± 0.5 | 298 | Straight line |
H05VVH6-F | 14C0.75mm2 | 39.2± 2.0 | 4.2± 0.5 | 323 | Straight line |
H05VVH6-F | 15C0.75mm2 | 41.6± 2.0 | 4.2± 0.5 | 344 | Straight line |
H05VVH6-F | 16C0.75mm2 | 43.9± 2.0 | 4.2± 0.5 | 364 | Straight line |
H05VVH6-F | 17C0.75mm2 | 46.3± 2.0 | 4.2± 0.5 | 384 | Straight line |
H05VVH6-F | 18C0.75mm2 | 49.6± 2.0 | 4.2± 0.5 | 410 | Straight line |
H05VVH6-F | 19C0.75mm2 | 52.0± 2.0 | 4.2± 0.5 | 430 | Straight line |
H05VVH6-F | 20C0.75mm2 | 54.3± 2.0 | 4.2± 0.5 | 450 | Straight line |
H05VVH6-F | 21C0.75mm2 | 56.7± 2.0 | 4.2± 0.5 | 470 | Straight line |
H05VVH6-F | 22C0.75mm2 | 59.0± 2.0 | 4.2± 0.5 | 491 | Straight line |
H05VVH6-F | 23C0.75mm2 | 61.4± 2.5 | 4.2± 0.5 | 511 | Straight line |
H05VVH6-F | 24C0.75mm2 | 64.7± 2.5 | 4.2± 0.5 | 537 | Straight line |
H05VVH6-F | 24C0.75mm2 | 31.3± 2.0 | 8.4± 0.5 | 470 | Bunch core |
H05VVH6-F | 30C0.75mm2 | 39.9± 2.0 | 7.8± 0.5 | 582 | Bunch core |
H05VVH6-F | 36C0.75mm2 | 43.5± 2.0 | 8.4± 0.5 | 691 | Bunch core |
H05VVH6-F | 40C0.75mm2 | 50.7± 2.0 | 7.8± 0.5 | 748 | Bunch core |
H05VVH6-F | 42C0.75mm2 | 49.5± 2.0 | 8.4± 0.5 | 791 | Bunch core |
H05VVH6-F | 48C0.75mm2 | 55.5± 2.0 | 8.4± 0.5 | 891 | Bunch core |
H05VVH6-F | 54C0.75mm2 | 61.5± 2.5 | 8.4± 0.5 | 990 | Bunch core |
H05VVH6-F | 60C0.75mm2 | 67.5± 2.5 | 8.4± 0.5 | 1090 | Bunch core |
H05VVH6-F | 66C0.75mm2 | 73.5± 2.5 | 8.4± 0.5 | 1190 | Bunch core |
