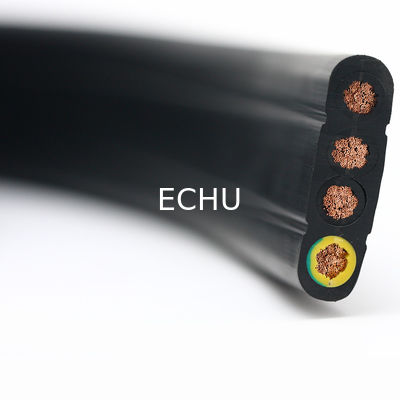

Flat Flexible Traveling Cable for Crane or Conveyor 12Cx1.5sqmm Black Jacket
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Black, Grey, Orange | Conductor: | Superfine Copper Strands Acc. To VDE0295, Class5 |
|---|---|---|---|
| Installation: | Flexible/Movable | Standard: | Acc. To VDE0482, Part265-2-1 Resp. EN50265-2-1 And IEC60332-1 |
| Voltage: | 300/500V, 450/750V, 600/1000V | Application: | As Connecting/control Cable For Cranes And Conveyors |
Flat Flexible Traveling Cable for Crane or Conveyor 12Cx1.5sqmm Black Jacket
As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other related products
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; Resistant to oil, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<L<0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel.
Size 2 to 60cores or more, size 0.5sqmm to 400sqmm.....
| Type | Cores | Sections(mm2) | width(mm) | thickness(mm) | Denity(kg/km) | Shape |
| YFFB | 2 | 1.25 | 9.0± 1.0 | 6.2± 0.5 | 100.5 | LINE TYPE |
| YFFB | 3 | 1.25 | 11.9± 1.0 | 6.2± 0.5 | 136.7 | LINE TYPE |
| YFFB | 4 | 1.25 | 15.8± 1.0 | 6.2± 0.5 | 181.6 | LINE TYPE |
| YFFB | 5 | 1.25 | 19.7± 1.0 | 6.2± 0.5 | 226.6 | LINE TYPE |
| YFFB | 6 | 1.25 | 22.6± 1.5 | 6.2± 0.5 | 262.8 | LINE TYPE |
| YFFB | 7 | 1.25 | 25.5± 1.5 | 6.2± 0.5 | 299 | LINE TYPE |
| YFFB | 8 | 1.25 | 28.4± 1.5 | 6.2± 0.5 | 335.2 | LINE TYPE |
| YFFB | 9 | 1.25 | 31.3± 2.0 | 6.2± 0.5 | 371.4 | LINE TYPE |
| YFFB | 10 | 1.25 | 34.2± 2.0 | 6.2± 0.5 | 407.6 | LINE TYPE |
| YFFB | 11 | 1.25 | 37.1± 2.0 | 6.2± 0.5 | 443.9 | LINE TYPE |
| YFFB | 12 | 1.25 | 40.0± 2.0 | 6.2± 0.5 | 480.1 | LINE TYPE |
| YFFB | 13 | 1.25 | 42.9± 2.0 | 6.2± 0.5 | 516.3 | LINE TYPE |
| YFFB | 14 | 1.25 | 46.8± 2.0 | 6.2± 0.5 | 561.2 | LINE TYPE |
| YFFB | 15 | 1.25 | 49.7± 2.0 | 6.2± 0.5 | 597.4 | LINE TYPE |
| YFFB | 16 | 1.25 | 52.6± 2.0 | 6.2± 0.5 | 633.6 | LINE TYPE |
| YFFB | 17 | 1.25 | 55.5± 2.0 | 6.2± 0.5 | 669.9 | LINE TYPE |
| YFFB | 18 | 1.25 | 59.4± 2.0 | 6.2± 0.5 | 714.8 | LINE TYPE |
| YFFB | 19 | 1.25 | 62.3± 2.5 | 6.2± 0.5 | 751 | LINE TYPE |
| YFFB | 20 | 1.25 | 65.2± 2.5 | 6.2± 0.5 | 787.2 | LINE TYPE |
| YFFB | 2 | 1.5 | 9.3± 1.0 | 5.8± 0.5 | 111.3 | LINE TYPE |
| YFFB | 3 | 1.5 | 12.3± 1.0 | 5.8± 0.5 | 148.5 | LINE TYPE |
| YFFB | 4 | 1.5 | 16.3± 1.0 | 5.8± 0.5 | 193.8 | LINE TYPE |
| YFFB | 5 | 1.5 | 20.3± 1.5 | 5.8± 0.5 | 239.2 | LINE TYPE |
| YFFB | 6 | 1.5 | 23.3± 1.5 | 5.8± 0.5 | 276.3 | LINE TYPE |
| YFFB | 7 | 1.5 | 26.3± 1.5 | 5.8± 0.5 | 313.5 | LINE TYPE |
| YFFB | 8 | 1.5 | 29.3± 1.5 | 5.8± 0.5 | 350.6 | LINE TYPE |
| YFFB | 9 | 1.5 | 32.3± 2.0 | 5.8± 0.5 | 387.7 | LINE TYPE |
| YFFB | 10 | 1.5 | 35.3± 2.0 | 5.8± 0.5 | 424.9 | LINE TYPE |
| YFFB | 11 | 1.5 | 38.3± 2.0 | 5.8± 0.5 | 462 | LINE TYPE |
| YFFB | 12 | 1.5 | 41.3± 2.0 | 5.8± 0.5 | 499.2 | LINE TYPE |
| YFFB | 13 | 1.5 | 44.3± 2.0 | 5.8± 0.5 | 536.3 | LINE TYPE |
| YFFB | 14 | 1.5 | 48.3± 2.0 | 5.8± 0.5 | 581.7 | LINE TYPE |
| YFFB | 15 | 1.5 | 51.3± 2.0 | 5.8± 0.5 | 618.8 | LINE TYPE |
| YFFB | 16 | 1.5 | 54.3± 2.0 | 5.8± 0.5 | 655.9 | LINE TYPE |
