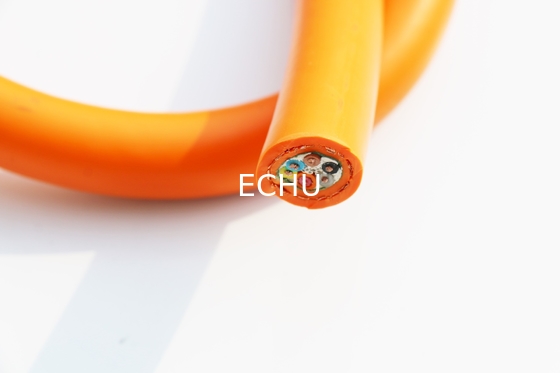

Charging Cables for Electrical Vehicles 300V H07BZ5-F 62893IEC123

Large Image : Charging Cables for Electrical Vehicles 300V H07BZ5-F 62893IEC123

Product Details:

Place of Origin:	China
Brand Name:	ECHU
Certification:	TUV SUD
Model Number:	H07BZ5-F 62893IEC123

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	USD0.101-USD10.954/m
Packaging Details:	splint reel/ splint box
Delivery Time:	10day after receiving payment
Payment Terms:	T/T, Western Union., L/C
Supply Ability:	10000KM/week

Contact Now

Detailed Product Description

Conductor:	Multiple Stranded Conductor	Application:	For Connection Set For Conductive Charging Of Electric Vehicles
Rated Voltage:	AC 450/750V, DC1000V	Rated Temp:	-40-+90℃
Conductor Material:	Tinned Copper Or Bare Copper	Conductor Type:	Stranded
Insulation:	EV1-2	Reference Standard:	EN50620:2017, IEC62893-3:2017
Jacket:	PUR	Flmae Test:	IEC60331-1-2
Min Bending Radius:	6xD

Charging Cables

·Applications:
applicable to charging cables of rated voltages up to and including AC 450/750V or DC 1000V for connection set for conductive charging of electric vehicles.

·Properties:
Conductor:Multiple stranded conductor
Insulation:EVI-2
Jacket:PUR

◆ PRODUCT DESCRIPTION:
Temperature range:-40℃~90℃
Rating voltage:AC 450/750V/DC 1000V
Reference standard:EN 50620:2017,IEC
62893-3:2017
Flame Test:IEC 60331-1-2
Min Bending radius:6xD

Type	Size	Conductor Stranded OD mm(Ref.)	Over diameter Non Shielded mm (Ref)	Max.Conductor resistance mΩ/m@20℃
H07BZ5-F 62893IEC123	3x1.5+(0~6)x(0.5~1.0)	1.6	9.2	3.3
	3×2.5+10-6)x(0.5~1.0	2.1	11	7.98
	3x4.0+(0-6)x(0.5~1.0	2.6	11.8	4.95
	3x6.0+10-6)x(0.5~1.0	3.4	13.5	3.3
	3x10.0+(0~6)x(0.5~1.0)	4.6	16.5	1.91
	3x16.0+(0~6)x(0.5~1.0)	5.9	19.5	1.21
	5x2.5+(0~6)x(0.5~1.0)	2.1	14	7.98
	5w40+10-6)x(0.5~1.0	2.6	15.5	4.95
	5x6.0+(0~6)x(0.5~1.0)	3.4	17	3.3
	5x10.0+(0~6)x(0.5~1.0)	4.6	20.5	1.91
	5×16.0+(0~6)x(0.5~1.0)	5.9	24.5	1.21
