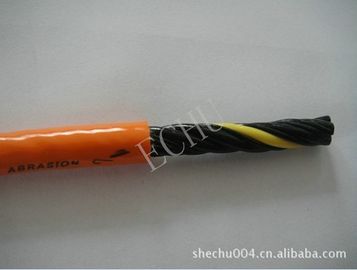

Special Cable for Drag Chains EKM71100 4Cx1.0SQMM for machine or equipments bending frequently

China Special Cable for Drag Chains EKM71100 4Cx1.0SQMM for machine or equipments bending frequently supplier

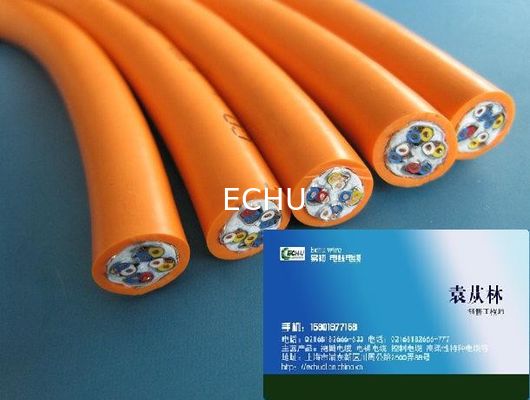

Large Image :  Special Cable for Drag Chains EKM71100 4Cx1.0SQMM for machine or equipments bending frequently

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CE
Model Number: EKM71100

Payment & Shipping Terms:

Minimum Order Quantity: 200M
Price: $0.15-$0.95/M
Packaging Details: plywood reel
Delivery Time: within 10days
Payment Terms: T/T
Supply Ability: 10000km/week
Detailed Product Description
Bending For Life: Above 5,000,000 Times Properties: Oil Resistance, Cool Resistance,abrasion Resistance, Flame Resistance, Anti-ultravoiolet
Insulation: Special PVC Jacket: Special PVC
Installation: Movable

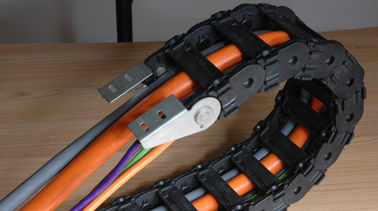

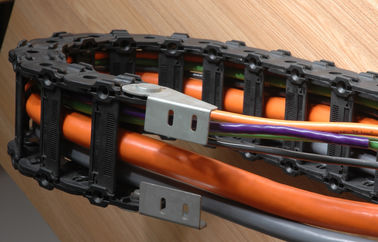

Flexible Drag Chain Cable

Resistance to bend PUR Drag Chain Cable

Applications:
It is suitable for day or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyor system, crane and other related equipments.

Properties:
Waterproofing, oil resistance, cool resistance, abrasion resistance, flame resistance, anti-ultraviolet
Bending life: About 5, 000, 000 times

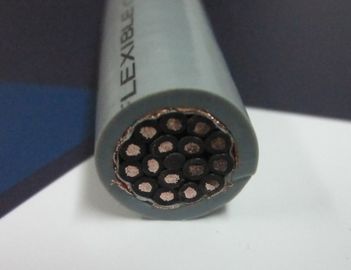

Structure:
Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295 CLASS6
Insulation: Special PVC
Color: ≤ 0.5mm brown, black, blue, purple, pink, orange
≥ 0.5mm cores black with consecutive white numbering
3 cores or more with green/ yellow earth wire
Sheath: Special PVC
Black (RAL9005) or grey (RAL7001)
Related voltage: SQ<0.5mm2: 300/300V
SQ>0.5mm2: 300/500V
Test voltage: 2000V

Temperature range:
Fixed Installation: -50 Celsuis degree----90 Celsuis degree
Flexing Installation: -30 Celsuis degree----90 Celsuis degree
The minimum bending radius: Fixed: 5xD
Moved: When travel < 10m, bending radius is 8xD
When travel > 10m, bending radius is 10xD

Special Cable for Drag Chains EKM71100 4Cx1.0SQMM for machine or equipments bending frequently

TYPE SIZE CONDUCTOR
EKM71100 O.1*2C 20/0.08CU+2/0.1steel
EKM71100 O.1*3C 20/0.08CU+2/0.1steel
EKM71100 O.1*4C 20/0.08CU+2/0.1steel
EKM71100 O.1*5C 20/0.08CU+2/0.1steel
EKM71100 O.1*6C 20/0.08CU+2/0.1steel
EKM71100 O.1*7C 20/0.08CU+2/0.1steel
EKM71100 O.1*8C 20/0.08CU+2/0.1steel
EKM71100 O.1*9C 20/0.08CU+2/0.1steel
EKM71100 O.1*1OC 20/0.08CU+2/0.1steel
EKM71100 O.1*11C 20/0.08CU+2/0.1steel
EKM71100 O.1*12C 20/0.08CU+2/0.1steel
EKM71100 O.1*13C 20/0.08CU+2/0.1steel
EKM71100 O.1*14C 20/0.08CU+2/0.1steel
EKM71100 O.1*15C 20/0.08CU+2/0.1steel
EKM71100 O.1*16C 20/0.08CU+2/0.1steel
EKM71100 O.1*17C 20/0.08CU+2/0.1steel
EKM71100 O.1*18C 20/0.08CU+2/0.1steel
EKM71100 O.1*19C 20/0.08CU+2/0.1steel
EKM71100 O.1*2OC 20/0.08CU+2/0.1steel
EKM71100 O.1*21C 20/0.08CU+2/0.1steel
EKM71100 O.1*22C 20/0.08CU+2/0.1steel
EKM71100 O.1*23C 20/0.08CU+2/0.1steel
EKM71100 O.1*24C 20/0.08CU+2/0.1steel
EKM71100 O.1*25C 20/0.08CU+2/0.1steel
EKM71100 O.1*26C 20/0.08CU+2/0.1steel
EKM71100 O.1*27C 20/0.08CU+2/0.1steel
EKM71100 O.1*28C 20/0.08CU+2/0.1steel
EKM71100 O.1*29C 20/0.08CU+2/0.1steel
EKM71100 O.1*3OC 20/0.08CU+2/0.1steel






EKM71100 0.14*2C 28/0.08CU+2/0.1steel
EKM71100 0.14*3C 28/0.08CU+2/0.1steel
EKM71100 0.14*4C 28/0.08CU+2/0.1steel
EKM71100 0.14*5C 28/0.08CU+2/0.1steel
EKM71100 0.14*6C 28/0.08CU+2/0.1steel
EKM71100 0.14*7C 28/0.08CU+2/0.1steel
EKM71100 0.14*8C 28/0.08CU+2/0.1steel
EKM71100 0.14*9C 28/0.08CU+2/0.1steel
EKM71100 0.14*1OC 28/0.08CU+2/0.1steel
EKM71100 0.14*11C 28/0.08CU+2/0.1steel
EKM71100 0.14*12C 28/0.08CU+2/0.1steel
EKM71100 0.14*13C 28/0.08CU+2/0.1steel
EKM71100 0.14*14C 28/0.08CU+2/0.1steel
EKM71100 0.14*15C 28/0.08CU+2/0.1steel
EKM71100 0.14*16C 28/0.08CU+2/0.1steel
EKM71100 0.14*17C 28/0.08CU+2/0.1steel
EKM71100 0.14*18C 28/0.08CU+2/0.1steel
EKM71100 0.14*19C 28/0.08CU+2/0.1steel
EKM71100 0.14*2OC 28/0.08CU+2/0.1steel
EKM71100 0.14*21C 28/0.08CU+2/0.1steel
EKM71100 0.14*22C 28/0.08CU+2/0.1steel
EKM71100 0.14*23C 28/0.08CU+2/0.1steel
EKM71100 0.14*24C 28/0.08CU+2/0.1steel
EKM71100 0.14*25C 28/0.08CU+2/0.1steel
EKM71100 0.14*26C 28/0.08CU+2/0.1steel
EKM71100 0.14*27C 28/0.08CU+2/0.1steel
EKM71100 0.14*28C 28/0.08CU+2/0.1steel
EKM71100 0.14*29C 28/0.08CU+2/0.1steel
EKM71100 0.14*3OC 28/0.08CU+2/0.1steel






EKM71100 O.2*2C 40/0.08CU+2/0.1steel
EKM71100 O.2*3C 40/0.08CU+2/0.1steel
EKM71100 O.2*4C 40/0.08CU+2/0.1steel
EKM71100 O.2*5C 40/0.08CU+2/0.1steel
EKM71100 O.2*6C 40/0.08CU+2/0.1steel
EKM71100 O.2*7C 40/0.08CU+2/0.1steel
EKM71100 O.2*8C 40/0.08CU+2/0.1steel
EKM71100 O.2*9C 40/0.08CU+2/0.1steel
EKM71100 O.2*1OC 40/0.08CU+2/0.1steel
EKM71100 O.2*11C 40/0.08CU+2/0.1steel
EKM71100 O.2*12C 40/0.08CU+2/0.1steel
EKM71100 O.2*13C 40/0.08CU+2/0.1steel
EKM71100 O.2*14C 40/0.08CU+2/0.1steel
EKM71100 O.2*15C 40/0.08CU+2/0.1steel
EKM71100 O.2*16C 40/0.08CU+2/0.1steel
EKM71100 O.2*17C 40/0.08CU+2/0.1steel
EKM71100 O.2*18C 40/0.08CU+2/0.1steel
EKM71100 O.2*19C 40/0.08CU+2/0.1steel
EKM71100 O.2*2OC 40/0.08CU+2/0.1steel
EKM71100 O.2*21C 40/0.08CU+2/0.1steel
EKM71100 O.2*22C 40/0.08CU+2/0.1steel
EKM71100 O.2*23C 40/0.08CU+2/0.1steel
EKM71100 O.2*24C 40/0.08CU+2/0.1steel
EKM71100 O.2*25C 40/0.08CU+2/0.1steel
EKM71100 O.2*26C 40/0.08CU+2/0.1steel
EKM71100 O.2*27C 40/0.08CU+2/0.1steel
EKM71100 O.2*28C 40/0.08CU+2/0.1steel
EKM71100 O.2*29C 40/0.08CU+2/0.1steel
EKM71100 O.2*3OC 40/0.08CU+2/0.1steel








EKM71100 O.25*2C 50 0.08
EKM71100 O.25*3C 50 0.08
EKM71100 O.25*4C 50 0.08
EKM71100 O.25*5C 50 0.08
EKM71100 O.25*6C 50 0.08
EKM71100 O.25*7C 50 0.08
EKM71100 O.25*8C 50 0.08
EKM71100 O.25*9C 50 0.08
EKM71100 O.25*1OC 50 0.08
EKM71100 O.25*11C 50 0.08
EKM71100 O.25*12C 50 0.08
EKM71100 O.25*13C 50 0.08
EKM71100 O.25*14C 50 0.08
EKM71100 O.25*15C 50 0.08
EKM71100 O.25*16C 50 0.08
EKM71100 O.25*17C 50 0.08
EKM71100 O.25*18C 50 0.08
EKM71100 O.25*19C 50 0.08
EKM71100 O.25*2OC 50 0.08
EKM71100 O.25*21C 50 0.08
EKM71100 O.25*22C 50 0.08
EKM71100 O.25*23C 50 0.08
EKM71100 O.25*24C 50 0.08
EKM71100 O.25*25C 50 0.08
EKM71100 O.25*26C 50 0.08
EKM71100 O.25*27C 50 0.08
EKM71100 O.25*28C 50 0.08
EKM71100 O.25*29C 50 0.08
EKM71100 O.25*3OC 50 0.08








EKM71100 O.3*2C 60 0.08
EKM71100 O.3*3C 60 0.08
EKM71100 O.3*4C 60 0.08
EKM71100 O.3*5C 60 0.08
EKM71100 O.3*6C 60 0.08
EKM71100 O.3*7C 60 0.08
EKM71100 O.3*8C 60 0.08
EKM71100 O.3*9C 60 0.08
EKM71100 O.3*1OC 60 0.08
EKM71100 O.3*11C 60 0.08
EKM71100 O.3*12C 60 0.08
EKM71100 O.3*13C 60 0.08
EKM71100 O.3*14C 60 0.08
EKM71100 O.3*15C 60 0.08
EKM71100 O.3*16C 60 0.08
EKM71100 O.3*17C 60 0.08
EKM71100 O.3*18C 60 0.08
EKM71100 O.3*19C 60 0.08
EKM71100 O.3*2OC 60 0.08
EKM71100 O.3*21C 60 0.08
EKM71100 O.3*22C 60 0.08
EKM71100 O.3*23C 60 0.08
EKM71100 O.3*24C 60 0.08
EKM71100 O.3*25C 60 0.08
EKM71100 O.3*26C 60 0.08
EKM71100 O.3*27C 60 0.08
EKM71100 O.3*28C 60 0.08
EKM71100 O.3*29C 60 0.08
EKM71100 O.3*3OC 60 0.08








EKM71100 0.34*2C 68 0.08
EKM71100 0.34*3C 68 0.08
EKM71100 0.34*4C 68 0.08
EKM71100 0.34*5C 68 0.08
EKM71100 0.34*6C 68 0.08
EKM71100 0.34*7C 68 0.08
EKM71100 0.34*8C 68 0.08
EKM71100 0.34*9C 68 0.08
EKM71100 0.34*10C 68 0.08
EKM71100 0.34*11C 68 0.08
EKM71100 0.34*12C 68 0.08
EKM71100 0.34*13C 68 0.08
EKM71100 0.34*14C 68 0.08
EKM71100 0.34*15C 68 0.08
EKM71100 0.34*16C 68 0.08
EKM71100 0.34*17C 68 0.08
EKM71100 0.34*18C 68 0.08
EKM71100 0.34*19C 68 0.08
EKM71100 0.34*20C 68 0.08
EKM71100 0.34*21C 68 0.08
EKM71100 0.34*22C 68 0.08
EKM71100 0.34*23C 68 0.08
EKM71100 0.34*24C 68 0.08
EKM71100 0.34*25C 68 0.08
EKM71100 0.34*26C 68 0.08
EKM71100 0.34*27C 68 0.08
EKM71100 0.34*28C 68 0.08
EKM71100 0.34*29C 68 0.08
EKM71100 0.34*30C 68 0.08
EKM71100 0.34*31C 68 0.08
EKM71100 0.34*32C 68 0.08
EKM71100 0.34*33C 68 0.08
EKM71100 0.34*34C 68 0.08
EKM71100 0.34*35C 68 0.08
EKM71100 0.34*36C 68 0.08








EKM71100 O.4*2C 80 0.08
EKM71100 O.4*3C 80 0.08
EKM71100 O.4*4C 80 0.08
EKM71100 O.4*5C 80 0.08
EKM71100 O.4*6C 80 0.08
EKM71100 O.4*7C 80 0.08
EKM71100 O.4*8C 80 0.08
EKM71100 O.4*9C 80 0.08
EKM71100 O.4*1OC 80 0.08
EKM71100 O.4*11C 80 0.08
EKM71100 O.4*12C 80 0.08
EKM71100 O.4*13C 80 0.08
EKM71100 O.4*14C 80 0.08
EKM71100 O.4*15C 80 0.08
EKM71100 O.4*16C 80 0.08
EKM71100 O.4*17C 80 0.08
EKM71100 O.4*18C 80 0.08
EKM71100 O.4*19C 80 0.08
EKM71100 O.4*2OC 80 0.08
EKM71100 O.4*21C 80 0.08
EKM71100 O.4*22C 80 0.08
EKM71100 O.4*23C 80 0.08
EKM71100 O.4*24C 80 0.08
EKM71100 O.4*25C 80 0.08
EKM71100 O.4*26C 80 0.08
EKM71100 O.4*27C 80 0.08
EKM71100 O.4*28C 80 0.08
EKM71100 O.4*29C 80 0.08
EKM71100 O.4*3OC 80 0.08








EKM71100 O.5*2C 64 0.1
EKM71100 O.5*3C 64 0.1
EKM71100 O.5*4C 64 0.1
EKM71100 O.5*5C 64 0.1
EKM71100 O.5*6C 64 0.1
EKM71100 O.5*7C 64 0.1
EKM71100 O.5*8C 64 0.1
EKM71100 O.5*9C 64 0.1
EKM71100 O.5*1OC 64 0.1
EKM71100 O.5*11C 64 0.1
EKM71100 O.5*12C 64 0.1
EKM71100 O.5*13C 64 0.1
EKM71100 O.5*14C 64 0.1
EKM71100 O.5*15C 64 0.1
EKM71100 O.5*16C 64 0.1
EKM71100 O.5*17C 64 0.1
EKM71100 O.5*18C 64 0.1
EKM71100 O.5*19C 64 0.1
EKM71100 O.5*2OC 64 0.1
EKM71100 O.5*21C 64 0.1
EKM71100 O.5*22C 64 0.1
EKM71100 O.5*23C 64 0.1
EKM71100 O.5*24C 64 0.1
EKM71100 O.5*25C 64 0.1
EKM71100 O.5*26C 64 0.1
EKM71100 O.5*27C 64 0.1
EKM71100 O.5*28C 64 0.1
EKM71100 O.5*29C 64 0.1
EKM71100 O.5*3OC 64 0.1








EKM71100 O.75*2C 96 0.1
EKM71100 O.75*3C 96 0.1
EKM71100 O.75*4C 96 0.1
EKM71100 O.75*5C 96 0.1
EKM71100 O.75*6C 96 0.1
EKM71100 O.75*7C 96 0.1
EKM71100 O.75*8C 96 0.1
EKM71100 O.75*9C 96 0.1
EKM71100 O.75*1OC 96 0.1
EKM71100 O.75*11C 96 0.1
EKM71100 O.75*12C 96 0.1
EKM71100 O.75*13C 96 0.1
EKM71100 O.75*14C 96 0.1
EKM71100 O.75*15C 96 0.1
EKM71100 O.75*16C 96 0.1
EKM71100 O.75*17C 96 0.1
EKM71100 O.75*18C 96 0.1
EKM71100 O.75*19C 96 0.1
EKM71100 O.75*2OC 96 0.1
EKM71100 O.75*21C 96 0.1
EKM71100 O.75*22C 96 0.1
EKM71100 O.75*23C 96 0.1
EKM71100 O.75*24C 96 0.1
EKM71100 O.75*25C 96 0.1
EKM71100 O.75*26C 96 0.1
EKM71100 O.75*27C 96 0.1
EKM71100 O.75*28C 96 0.1
EKM71100 O.75*29C 96 0.1
EKM71100 O.75*3OC 96 0.1








EKM71100 1.O*2C 126 0.1
EKM71100 1.O*3C 126 0.1
EKM71100 1.O*4C 126 0.1
EKM71100 1.O*5C 126 0.1
EKM71100 1.O*6C 126 0.1
EKM71100 1.O*7C 126 0.1
EKM71100 1.O*8C 126 0.1
EKM71100 1.O*9C 126 0.1
EKM71100 1.O*1OC 126 0.1
EKM71100 1.O*11C 126 0.1
EKM71100 1.O*12C 126 0.1
EKM71100 1.O*13C 126 0.1
EKM71100 1.O*14C 126 0.1
EKM71100 1.O*15C 126 0.1
EKM71100 1.O*16C 126 0.1
EKM71100 1.O*17C 126 0.1
EKM71100 1.O*18C 126 0.1
EKM71100 1.O*19C 126 0.1
EKM71100 1.O*2OC 126 0.1
EKM71100 1.O*21C 126 0.1
EKM71100 1.O*22C 126 0.1
EKM71100 1.O*23C 126 0.1
EKM71100 1.O*24C 126 0.1
EKM71100 1.O*25C 126 0.1
EKM71100 1.O*26C 126 0.1
EKM71100 1.O*27C 126 0.1
EKM71100 1.O*28C 126 0.1
EKM71100 1.O*29C 126 0.1
EKM71100 1.O*3OC 126 0.1








EKM71100 1.5*2C 189 0.1
EKM71100 1.5*3C 189 0.1
EKM71100 1.5*4C 189 0.1
EKM71100 1.5*5C 189 0.1
EKM71100 1.5*6C 189 0.1
EKM71100 1.5*7C 189 0.1
EKM71100 1.5*8C 189 0.1
EKM71100 1.5*9C 189 0.1
EKM71100 1.5*10C 189 0.1
EKM71100 1.5*11C 189 0.1
EKM71100 1.5*12C 189 0.1
EKM71100 1.5*13C 189 0.1
EKM71100 1.5*14C 189 0.1
EKM71100 1.5*15C 189 0.1
EKM71100 1.5*16C 189 0.1
EKM71100 1.5*17C 189 0.1
EKM71100 1.5*18C 189 0.1
EKM71100 1.5*19C 189 0.1
EKM71100 1.5*20C 189 0.1
EKM71100 1.5*21C 189 0.1
EKM71100 1.5*22C 189 0.1
EKM71100 1.5*23C 189 0.1
EKM71100 1.5*24C 189 0.1
EKM71100 1.5*25C 189 0.1
EKM71100 1.5*26C 189 0.1
EKM71100 1.5*27C 189 0.1
EKM71100 1.5*28C 189 0.1
EKM71100 1.5*29C 189 0.1
EKM71100 1.5*30C 189 0.1








EKM71100 2.O*2C 255 0.1
EKM71100 2.O*3C 255 0.1
EKM71100 2.O*4C 255 0.1
EKM71100 2.O*5C 255 0.1
EKM71100 2.O*6C 255 0.1
EKM71100 2.O*7C 255 0.1
EKM71100 2.O*8C 255 0.1
EKM71100 2.O*9C 255 0.1
EKM71100 2.O*1OC 255 0.1
EKM71100 2.O*11C 255 0.1
EKM71100 2.O*12C 255 0.1
EKM71100 2.O*13C 255 0.1
EKM71100 2.O*14C 255 0.1
EKM71100 2.O*15C 255 0.1
EKM71100 2.O*16C 255 0.1
EKM71100 2.O*17C 255 0.1
EKM71100 2.O*18C 255 0.1
EKM71100 2.O*19C 255 0.1
EKM71100 2.O*2OC 255 0.1
EKM71100 2.O*21C 255 0.1
EKM71100 2.O*22C 255 0.1
EKM71100 2.O*23C 255 0.1
EKM71100 2.O*24C 255 0.1
EKM71100 2.O*25C 255 0.1
EKM71100 2.O*26C 255 0.1
EKM71100 2.O*27C 255 0.1
EKM71100 2.O*28C 255 0.1
EKM71100 2.O*29C 255 0.1
EKM71100 2.O*3OC 255 0.1








EKM71100 2.5*2C 161 0.14
EKM71100 2.5*3C 161 0.14
EKM71100 2.5*4C 161 0.14
EKM71100 2.5*5C 161 0.14
EKM71100 2.5*6C 161 0.14
EKM71100 2.5*7C 161 0.14
EKM71100 2.5*8C 161 0.14
EKM71100 2.5*9C 161 0.14
EKM71100 2.5*10C 161 0.14
EKM71100 2.5*11C 161 0.14
EKM71100 2.5*12C 161 0.14
EKM71100 2.5*13C 161 0.14
EKM71100 2.5*14C 161 0.14
EKM71100 2.5*15C 161 0.14
EKM71100 2.5*16C 161 0.14
EKM71100 2.5*17C 161 0.14
EKM71100 2.5*18C 161 0.14
EKM71100 2.5*19C 161 0.14
EKM71100 2.5*20C 161 0.14
EKM71100 2.5*21C 161 0.14
EKM71100 2.5*22C 161 0.14
EKM71100 2.5*23C 161 0.14
EKM71100 2.5*24C 161 0.14
EKM71100 2.5*25C 161 0.14
EKM71100 2.5*26C 161 0.14
EKM71100 2.5*27C 161 0.14
EKM71100 2.5*28C 161 0.14
EKM71100 2.5*29C 161 0.14
EKM71100 2.5*30C 161 0.14








EKM71100 4.O*2C 259 0.14
EKM71100 4.O*3C 259 0.14
EKM71100 4.O*4C 259 0.14
EKM71100 4.O*5C 259 0.14
EKM71100 4.O*6C 259 0.14
EKM71100 4.O*7C 259 0.14
EKM71100 4.O*8C 259 0.14
EKM71100 4.O*9C 259 0.14
EKM71100 4.O*1OC 259 0.14
EKM71100 4.O*11C 259 0.14
EKM71100 4.O*12C 259 0.14
EKM71100 4.O*13C 259 0.14
EKM71100 4.O*14C 259 0.14
EKM71100 4.O*15C 259 0.14
EKM71100 4.O*16C 259 0.14
EKM71100 4.O*17C 259 0.14
EKM71100 4.O*18C 259 0.14
EKM71100 4.O*19C 259 0.14
EKM71100 4.O*2OC 259 0.14
EKM71100 4.O*21C 259 0.14
EKM71100 4.O*22C 259 0.14
EKM71100 4.O*23C 259 0.14
EKM71100 4.O*24C 259 0.14
EKM71100 4.O*25C 259 0.14
EKM71100 4.O*26C 259 0.14
EKM71100 4.O*27C 259 0.14
EKM71100 4.O*28C 259 0.14
EKM71100 4.O*29C 259 0.14
EKM71100 4.O*3OC 259 0.14








EKM71100 6.O*2C 390 0.14
EKM71100 6.O*3C 390 0.14
EKM71100 6.O*4C 390 0.14
EKM71100 6.O*5C 390 0.14
EKM71100 6.O*6C 390 0.14
EKM71100 6.O*7C 390 0.14
EKM71100 6.O*8C 390 0.14
EKM71100 6.O*9C 390 0.14
EKM71100 6.O*1OC 390 0.14
EKM71100 6.O*11C 390 0.14
EKM71100 6.O*12C 390 0.14
EKM71100 6.O*13C 390 0.14
EKM71100 6.O*14C 390 0.14
EKM71100 6.O*15C 390 0.14
EKM71100 6.O*16C 390 0.14
EKM71100 6.O*17C 390 0.14
EKM71100 6.O*18C 390 0.14
EKM71100 6.O*19C 390 0.14
EKM71100 6.O*2OC 390 0.14
EKM71100 6.O*21C 390 0.14
EKM71100 6.O*22C 390 0.14
EKM71100 6.O*23C 390 0.14
EKM71100 6.O*24C 390 0.14
EKM71100 6.O*25C 390 0.14
EKM71100 6.O*26C 390 0.14
EKM71100 6.O*27C 390 0.14
EKM71100 6.O*28C 390 0.14
EKM71100 6.O*29C 390 0.14
EKM71100 6.O*3OC 390 0.14








EKM71100 8.0*2C 520 0.14
EKM71100 8.0*3C 520 0.14
EKM71100 8.0*4C 520 0.14
EKM71100 8.0*5C 520 0.14
EKM71100 8.0*6C 520 0.14
EKM71100 8.0*7C 520 0.14
EKM71100 8.0*8C 520 0.14
EKM71100 8.0*9C 520 0.14
EKM71100 8.0*10C 520 0.14








EKM71100 10.0*2C 353 0.19
EKM71100 10.0*3C 353 0.19
EKM71100 10.0*4C 353 0.19
EKM71100 10.0*5C 353 0.19
EKM71100 10.0*6C 353 0.19
EKM71100 10.0*7C 353 0.19
EKM71100 10.0*8C 353 0.19
EKM71100 10.0*9C 353 0.19
EKM71100 10.0*10C 353 0.19








EKM71100 16.0*2C 567 0.19
EKM71100 16.0*3C 567 0.19
EKM71100 16.0*4C 567 0.19
EKM71100 16.0*5C 567 0.19
EKM71100 16.0*6C 567 0.19
EKM71100 16.0*7C 567 0.19








EKM71100 25.0*2C 882 0.19
EKM71100 25.0*3C 882 0.19
EKM71100 25.0*4C 882 0.19
EKM71100 25.0*5C 882 0.19








EKM71100 35.0*2C 1234 0.19
EKM71100 35.0*3C 1234 0.19
EKM71100 35.0*4C 1234 0.19
EKM71100 35.0*5C 1234 0.19

Contact Details
ECHU Special Wire & Cable (Kunshan) Co., Ltd.

Contact Person: Ms. Emma Zou

Tel: 86-21-68182666-659

Send your inquiry directly to us (0 / 3000)
