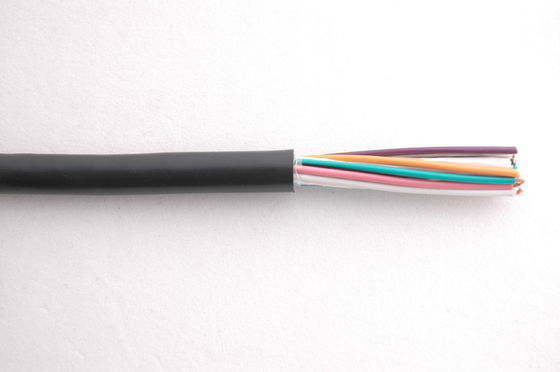

Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable

China Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier
Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable supplier

Large Image :  Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: CE
Model Number: RVV

Payment & Shipping Terms:

Minimum Order Quantity: 300Meter
Price: USD0.116-9.988USD/M
Packaging Details: plywood reel
Delivery Time: within 10days after receiving payment
Payment Terms: T/T, Western Union
Supply Ability: 100000km/week
Detailed Product Description
Application: Connect And Control Cable Properties: High Mechanical Property, Excellent Insulation, Good Chemistry Stability, Water Resistance
Core Color: Colour Core Identification Or Number Identification Sheath: PVC
Optional Type: Flat, RVVB

Round Elevator and Escalator Control Cable

The cross section and sizes are optional
Applications:
Working as connecting and control cable under dry or wet indoor situation, especially for kinds of electronic installation of industrial condition. The cable cross section area 0.5sqmm or upper could work as control and connecting cable in machine tool manufacture, whole set equipment installation, power station, belchin and air conditionor installation, For its special flexibility, it could also work in installation or fixation.
Properties:
For PVC's high mechanical property, excellent insulation, good chemistry stability, water resistance. Coloured core identification cable has more excellent capability and safety service.
Structure:
Conductor: Copper acc. To VDE0295CLASS 5
Insulation: Special PVC
Inner liner: PP or non-woven for buffer
Sheath: PVC 70C sheath, black (RAL9005) or Grey (RAL7001)
Standards: JB8734.4-1998, GB5023.5-2008
Technical data:
Minimum bending diameter
Fixed Installation: 15xouter diameter
Flexing Installation: 6xouter diameter
Temprature range:
Flexing Installation: -10C to +70C
Fixed Installation: -30C to +70C
Test Voltage: </=0.5mm: 2000V
>/=0.5mm: 2500V
Working temperature: : </=0.5mm: 300/300V
>/=0.5mm: 300/500V
Optional: Flat Cable
Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable
Round Elevator and Escalator Control Cable RVV 20x0.5 PVC insulation PVC sheath Cable

TypeSizeConductorWeight (KG/KM)O.D.(mm)
RVV0.75*2C490.14486.2
RVV0.75*3C490.14626.5
RVV0.75*4C490.14777.1
RVV0.75*5C490.14917.7
RVV0.75*6C490.141078.4
RVV0.75*7C490.141198.4
RVV0.75*8C490.141439.5
RVV0.75*9C490.1415910.3
RVV0.75*10C490.1417511
RVV0.75*11C490.1418911.3
RVV0.75*12C490.1421211.7
RVV0.75*13C490.1422812.3
RVV0.75*14C490.1424012.3
RVV0.75*15C490.1425612.9
RVV0.75*16C490.1426812.9
RVV0.75*17C490.1428413.6
RVV0.75*18C490.1429713.6
RVV0.75*19C490.1430913.6
RVV0.75*20C490.1432313.9
RVV0.75*21C490.1433714.3
RVV0.75*22C490.1435515.1
RVV0.75*23C490.1437115.8
RVV0.75*24C490.1438315.8
RVV0.75*25C490.1439716.1
RVV0.75*26C490.1440916.1
RVV0.75*27C490.1442116.1
RVV0.75*28C490.1443716.7
RVV0.75*29C490.1444916.7
RVV0.75*30C490.1447817.1
RVV0.75*31C490.1449417.7
RVV0.75*32C490.1450617.7
RVV0.75*33C490.1451817.7
RVV0.75*34C490.1453518.4
RVV0.75*35C490.1454718.4
RVV0.75*36C490.1456018.4
RVV0.75*37C490.1457218.4
RVV0.75*38C490.1458819.1
