UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0 with Black Color

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0 with Black Color

China UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier
UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color supplier

Large Image :  UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0 with Black Color

Product Details:

Place of Origin: China
Brand Name: ECHU
Certification: UL
Model Number: UL1284

Payment & Shipping Terms:

Minimum Order Quantity: 100meter
Price: USD0.3 to USD9.3
Packaging Details: in roll or splint reel
Supply Ability: 10000km per week
Contact Now
Detailed Product Description
Color: Black/red/.... Voltage: 600V
Temperature: 105℃ Condutor: Bare Copper Or Tinned Copper

Product Description:

UL CERT.:E312831

UL1284: 1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil

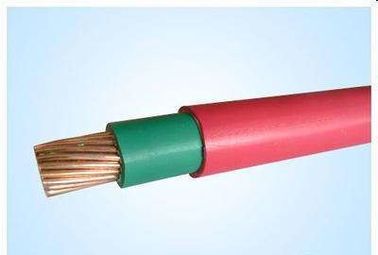

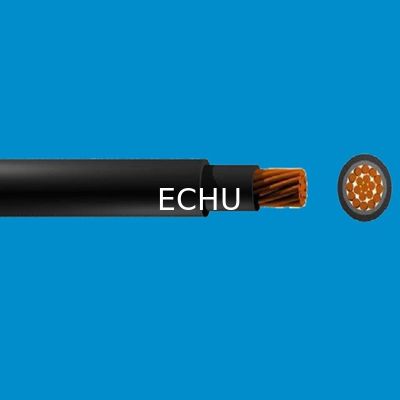

Construction
Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
UL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black ColorUL Certified ROHS PVC UL1284 Electrical Cable MTW 600V, 105℃ Bare Copper or Tinned Copper, 2/0  with Black Color

TYPE
Spec. AWG
Bare Copper

Tinned Copper

Insulation Thickness mm
Weight KG/KM


Conductor No.
Conductor Dia.
Conductor No.
Conductor Dia.


UL1284
8
118
0.3
118
0.30
2.03
138.4
UL1284
7
147
0.3
147
0.30
2.03
161.8
UL1284
6
189
0.3
189
0.30
2.03
194.9
UL1284
5
238
0.3
238
0.30
2.03
232.8
UL1284
4
299
0.3
299
0.30
2.03
279.0
UL1284
3
378
0.3
378
0.30
2.03
337.9
UL1284
2
475
0.3
475
0.30
2.03
409.1
UL1284
1
600
0.3
600
0.30
2.03
499.6
UL1284
1/0
251
0.52
272
0.50
2.03
609.7
UL1284
2/0
317
0.52
343
0.50
2.03
749.9
UL1284
3/0
400
0.52
433
0.50
2.03
924.3
UL1284
4/0
505
0.52
546
0.50
2.03
1142.9
UL1284
250
598
0.52
647
0.50
2.41
1372.4
UL1284
300
716
0.52
774
0.50
2.41
1617.7
UL1284
350
833
0.52
901
0.50
2.41
1859.5
UL1284
400
955
0.52
1033
0.50
2.41
2110.4
UL1284
450
1073
0.52
1161
0.50
2.41
2352.2
UL1284
500
1191
0.52
1288
0.50
2.41
2593.1
UL1284
550
1313
0.52
1420
0.50
2.79
2894.1
