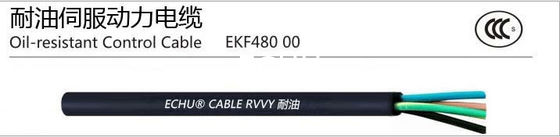

Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color

China Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color supplier
Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color supplier Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color supplier Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color supplier Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color supplier

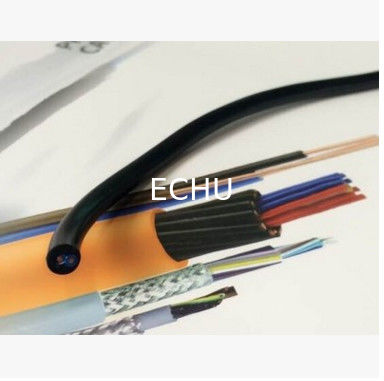

Large Image :  Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color

Product Details:

Place of Origin: Shanghai, China
Brand Name: ECHU
Certification: CE
Model Number: RVVY, RVVYP

Payment & Shipping Terms:

Minimum Order Quantity: 300M
Price: USD0.5-USD0.7
Packaging Details: splint reel
Delivery Time: 7 to 10days after receiving payment
Payment Terms: T/T
Supply Ability: 100KM/week
Contact Now
Detailed Product Description
Color: Black, Grey, Orange, Green Voltage: 300/500V, 450/750V
Conductor: Bare Copper Acc. To VDE0295 CLASS5 Insulation: Special PVC
Jacket: Special PVC

PVC Control Cable Anti-Oil
Applications:

As installation cable, it is used under dry or wet indoor situation, for moving or industrial envoronment condition, such as machine tool, wooden tool, qrinding machine.

Properties:

Water proof, oil resistance, cool resistance, flame resistance, normal working temperature is 40C
Its bending for life is more than normal installation cable's, but could not be used as tray cable

Standards:

Acc. to IEC227-7: 1995 GB5023.7-2008
Oil resistance: ASTM GB/T2951.5

Structure:
Conductor: Fine oxygen-free coppper acc VDE0295 CLASS 5
Insulation: PVC
Sheath: Modified oil reistance PVC Sheath
Black (RAL9005) or Grey (RAL7001)
Rated Voltage: 300/500V
Testing Voltage: 2500V

Technical data:
Working temperature:
Fixed installation: -40C to 105C
Flexible Installation: -5C to 70C
The minimum bending radius:
Fixed Installation: 4 x external diameter
Flexiing Installation: 15x external diameter
As UL the most is 16AWG voltage 300/300V 80C


Type Size Conductor Weight KG/KM O.D. Down(mm) O.D. UP (mm)
RVVY 1.5*2C 51 0.19 104.7 7.7 8.5
RVVY 1.5*3C 51 0.19 127.3 8.2 9
RVVY 1.5*4C 51 0.19 157.2 9.1 9.9
RVVY 1.5*5C 51 0.19 194.6 9.9 11.4
RVVY 1.5*6C 51 0.19 233.6 10.9 12.4
RVVY 1.5*7C 51 0.19 275.2 12 13.5
RVVY 1.5*8C 51 0.19 326.4 13.4 14.9
RVVY 1.5*9C 51 0.19 377.2 14.3 15.8
RVVY 1.5*10C 51 0.19 375.3 14.4 15.9
RVVY 1.5*11C 51 0.19 398.4 14.5 17
RVVY 1.5*12C 51 0.19 414.6 14.5 17
RVVY 1.5*13C 51 0.19 455.1 15.4 17.9
RVVY 1.5*14C 51 0.19 471 15.4 17.9
RVVY 1.5*15C 51 0.19 514.4 16.4 18.9
RVVY 1.5*16C 51 0.19 530.5 16.4 18.9
RVVY 1.5*17C 51 0.19 575.4 17.4 19.9
RVVY 1.5*18C 51 0.19 591.7 17.4 19.9
RVVY 1.5*19C 51 0.19 614.8 17.4 19.9
RVVY 1.5*20C 51 0.19 642.7 17.9 20.4
RVVY 1.5*21C 51 0.19 677.3 18.4 20.9
RVVY 1.5*22C 51 0.19 689.9 19.3 22.3
RVVY 1.5*23C 51 0.19 729.2 20.4 23.4
RVVY 1.5*24C 51 0.19 752.3 20.4 23.4
RVVY 1.5*25C 51 0.19 784 20.9 23.9
RVVY 1.5*26C 51 0.19 807.2 20.9 23.9
RVVY 1.5*27C 51 0.19 830.4 20.9 23.9
RVVY 1.5*28C 51 0.19 868.3 21.8 24.8
RVVY 1.5*29C 51 0.19 891.5 21.8 24.8
RVVY 1.5*30C 51 0.19 914.7 21.8 24.8
RVVY 1.5*31C 51 0.19 954.7 22.8 25.8
RVVY 1.5*32C 51 0.19 977.9 22.8 25.8
RVVY 1.5*33C 51 0.19 1001 22.8 25.8
RVVY 1.5*34C 51 0.19 1042.6 23.9 26.9
RVVY 1.5*35C 51 0.19 1065.7 23.9 26.9
RVVY 1.5*36C 51 0.19 1088.9 23.9 26.9

RVVY 2.0*2C 67 0.19 126 8.4 9.2
RVVY 2.0*3C 67 0.19 154.1 8.9 9.7
RVVY 2.0*4C 67 0.19 190.9 9.7 11.2
RVVY 2.0*5C 67 0.19 236.7 10.8 12.3
RVVY 2.0*6C 67 0.19 284.6 12 13.5
RVVY 2.0*7C 67 0.19 335.6 13.1 14.6
RVVY 2.0*8C 67 0.19 397.9 14.2 16.7
RVVY 2.0*9C 67 0.19 460.1 15.2 17.7
RVVY 2.0*10C 67 0.19 458.6 15.3 17.8
RVVY 2.0*11C 67 0.19 487.3 15.9 18.4
RVVY 2.0*12C 67 0.19 507.9 15.9 18.4
RVVY 2.0*13C 67 0.19 557.5 16.9 19.4
RVVY 2.0*14C 67 0.19 577.6 16.9 19.4
RVVY 2.0*15C 67 0.19 630.8 18 20.5
RVVY 2.0*16C 67 0.19 651.3 18 20.5
RVVY 2.0*17C 67 0.19 706.2 18.6 21.6
RVVY 2.0*18C 67 0.19 726.7 18.6 21.6
RVVY 2.0*19C 67 0.19 755.7 18.6 21.6
RVVY 2.0*20C 67 0.19 790.2 19.2 22.2
RVVY 2.0*21C 67 0.19 832.9 19.8 22.8
RVVY 2.0*22C 67 0.19 821.1 20.8 23.8
RVVY 2.0*23C 67 0.19 866.4 21.9 24.9
RVVY 2.0*24C 67 0.19 895.3 21.9 24.9
RVVY 2.0*25C 67 0.19 932.9 22.5 25.5
RVVY 2.0*26C 67 0.19 961.9 22.5 25.5
RVVY 2.0*27C 67 0.19 990.8 22.5 25.5
RVVY 2.0*28C 67 0.19 1034.7 23.5 26.5
RVVY 2.0*29C 67 0.19 1063.7 23.5 26.5
RVVY 2.0*30C 67 0.19 1092.7 23.5 26.5
RVVY 2.0*31C 67 0.19 1138.6 24.6 27.6
RVVY 2.0*32C 67 0.19 1167.6 24.6 27.6
RVVY 2.0*33C 67 0.19 1196.6 24.6 27.6
RVVY 2.0*34C 67 0.19 1244 25.7 28.7
RVVY 2.0*35C 67 0.19 1273 25.7 28.7
RVVY 2.0*36C 67 0.19 1302 25.7 28.7

RVVY 2.5*2C 84 0.19 153.6 9.3 10.1
RVVY 2.5*3C 84 0.19 188.2 9.7 11.2
RVVY 2.5*4C 84 0.19 233.3 10.9 12.4
RVVY 2.5*5C 84 0.19 289.8 12.1 13.6
RVVY 2.5*6C 84 0.19 348.9 13.4 14.9
RVVY 2.5*7C 84 0.19 411.7 14.2 16.7
RVVY 2.5*8C 84 0.19 488.7 15.9 18.4
RVVY 2.5*9C 84 0.19 565.7 17 19.5
RVVY 2.5*10C 84 0.19 563.6 17.2 19.7
RVVY 2.5*11C 84 0.19 599 17.8 20.3
RVVY 2.5*12C 84 0.19 624.2 17.8 20.3
RVVY 2.5*13C 84 0.19 685.5 18.9 21.4
RVVY 2.5*14C 84 0.19 710.2 18.9 21.4
RVVY 2.5*15C 84 0.19 775.9 19.7 22.7
RVVY 2.5*16C 84 0.19 801.1 19.7 22.7
RVVY 2.5*17C 84 0.19 869 21 24
RVVY 2.5*18C 84 0.19 894.3 21 24
RVVY 2.5*19C 84 0.19 930 21 24
RVVY 2.5*20C 84 0.19 972.5 21.6 24.6
RVVY 2.5*21C 84 0.19 1025.4 22.2 25.2
RVVY 2.5*22C 84 0.19 1136.8 24 27
RVVY 2.5*23C 84 0.19 1178.6 25.3 28.3
RVVY 2.5*24C 84 0.19 1201.3 25.3 28.3
RVVY 2.5*25C 84 0.19 1256.1 25.9 28.9
RVVY 2.5*26C 84 0.19 1291.9 25.9 28.9
RVVY 2.5*27C 84 0.19 1258.8 25.9 28.9
RVVY 2.5*28C 84 0.19 1316.4 27 30
RVVY 2.5*29C 84 0.19 1352.2 27 30
RVVY 2.5*30C 84 0.19 1387.9 27 30
RVVY 2.5*31C 84 0.19 1448.6 28.3 31.3
RVVY 2.5*32C 84 0.19 1484.3 28.3 31.3
RVVY 2.5*33C 84 0.19 1520.1 28.3 31.3
RVVY 2.5*34C 84 0.19 1582.9 29.5 32.5
RVVY 2.5*35C 84 0.19 1618.7 29.5 32.5
RVVY 2.5*36C 84 0.19 1654.5 29.5 32.5

RVVY 4.0*2C 77 0.25 211.8 10.5 12
RVVY 4.0*3C 77 0.25 262.9 11.2 12.7
RVVY 4.0*4C 77 0.25 328 12.5 14
RVVY 4.0*5C 77 0.25 408.6 14 15.5
RVVY 4.0*6C 77 0.25 492.7 15 17.5
RVVY 4.0*7C 77 0.25 582 16.5 19
RVVY 4.0*8C 77 0.25 690.2 18.5 21
RVVY 4.0*9C 77 0.25 798.8 19.3 22.3
RVVY 4.0*10C 77 0.25 799.5 19.5 22.5
RVVY 4.0*11C 77 0.25 851.2 20.2 23.2
RVVY 4.0*12C 77 0.25 890.1 20.2 23.2
RVVY 4.0*13C 77 0.25 977.1 21.5 24.5
RVVY 4.0*14C 77 0.25 1015.2 21.5 24.5
RVVY 4.0*15C 77 0.25 1108.1 22.9 25.9
RVVY 4.0*16C 77 0.25 1146.8 22.9 25.9
RVVY 4.0*17C 77 0.25 1242.7 24.4 27.4
RVVY 4.0*18C 77 0.25 1281.5 24.4 27.4
RVVY 4.0*19C 77 0.25 1334.6 24.4 27.4
RVVY 4.0*20C 77 0.25 1396.4 25.2 28.2
RVVY 4.0*21C 77 0.25 1472.2 25.9 28.9
RVVY 4.0*22C 77 0.25 1500.9 27.9 30.9
RVVY 4.0*23C 77 0.25 1585.3 29.4 32.4
RVVY 4.0*24C 77 0.25 1638.4 29.4 32.4
RVVY 4.0*25C 77 0.25 1708 30.2 33.2
RVVY 4.0*26C 77 0.25 1761.1 30.2 33.2
RVVY 4.0*27C 77 0.25 1814.2 30.2 33.2
RVVY 4.0*28C 77 0.25 1896.1 31.5 34.5
RVVY 4.0*29C 77 0.25 1949.2 31.5 34.5
RVVY 4.0*30C 77 0.25 2002.3 31.5 34.5
RVVY 4.0*31C 77 0.25 2088.3 32.9 35.9
RVVY 4.0*32C 77 0.25 2141.4 32.9 35.9
RVVY 4.0*33C 77 0.25 2194.4 32.9 35.9
RVVY 4.0*34C 77 0.25 2283.4 34.4 37.4
RVVY 4.0*35C 77 0.25 2336.5 34.4 37.4
RVVY 4.0*36C 77 0.25 2389.6 34.4 37.4

RVVY 6.0*2C 77 0.31 285 12.1 13.6
RVVY 6.0*3C 77 0.31 357.5 13 14.5
RVVY 6.0*4C 77 0.31 448 14.5 16
RVVY 6.0*5C 77 0.31 558.7 15.6 18.1
RVVY 6.0*6C 77 0.31 673.8 17.3 19.8
RVVY 6.0*7C 77 0.31 795.6 19 21.5
RVVY 6.0*8C 77 0.31 941.9 20.8 23.8
RVVY 6.0*9C 77 0.31 1089 22.2 25.2
RVVY 6.0*10C 77 0.31 1096.1 22.5 25.5
RVVY 6.0*11C 77 0.31 1169.4 23.3 26.3
RVVY 6.0*12C 77 0.31 1226.4 23.3 26.3
RVVY 6.0*13C 77 0.31 1345.2 24.8 27.8
RVVY 6.0*14C 77 0.31 1401.1 24.8 27.8
RVVY 6.0*15C 77 0.31 1527.7 26.4 29.4
RVVY 6.0*16C 77 0.31 1584.3 26.4 29.4
RVVY 6.0*17C 77 0.31 1714.7 28.2 31.2
RVVY 6.0*18C 77 0.31 1771.5 28.2 31.2
RVVY 6.0*19C 77 0.31 1846.8 28.2 31.2
RVVY 6.0*20C 77 0.31 1933.3 29 32
RVVY 6.0*21C 77 0.31 2037.8 29.9 32.9

RVVY 10*2C 77 0.4 489 16 18.5
RVVY 10*3C 77 0.4 607.5 17.2 19.7
RVVY 10*4C 77 0.4 760 18.8 21.8
RVVY 10*5C 77 0.4 923.1 21 24
RVVY 10*6C 77 0.4 1093.5 23.4 26.4
RVVY 10*7C 77 0.4 1262.3 25.8 28.8
RVVY 10*8C 77 0.4 1455.4 28.9 31.9
RVVY 10*9C 77 0.4 1645.7 31 34
RVVY 10*10C 77 0.4 1820.5 31.3 34.3
RVVY 10*11C 77 0.4 1996.1 32.5 35.5
RVVY 10*12C 77 0.4 2086.2 32.5 35.5

RVVY 16*2C 121 0.4 677.7 18.6 21.1
RVVY 16*3C 121 0.4 850.8 19.5 22.5
RVVY 16*4C 121 0.4 1069.1 21.9 24.9
RVVY 16*5C 121 0.4 1301.8 24.5 27.5
RVVY 16*6C 121 0.4 1544.2 27.2 30.2
RVVY 16*7C 121 0.4 1784.5 30 33
RVVY 16*8C 121 0.4 2057.1 33.6 36.6
RVVY 16*9C 121 0.4 2326.5 36 39

RVVY 25*2C 189 0.4 1036.2 22.5 25.5
RVVY 25*3C 189 0.4 1306.9 24.2 27.2
RVVY 25*4C 189 0.4 1646.4 27.2 30.2
RVVY 25*5C 189 0.4 2007.7 30.4 33.4
RVVY 25*6C 189 0.4 2383.8 33.8 36.8

RVVY 35*2C 265 0.4 1499 27.6 30.6
RVVY 35*3C 265 0.4 1886.1 29.7 32.7
