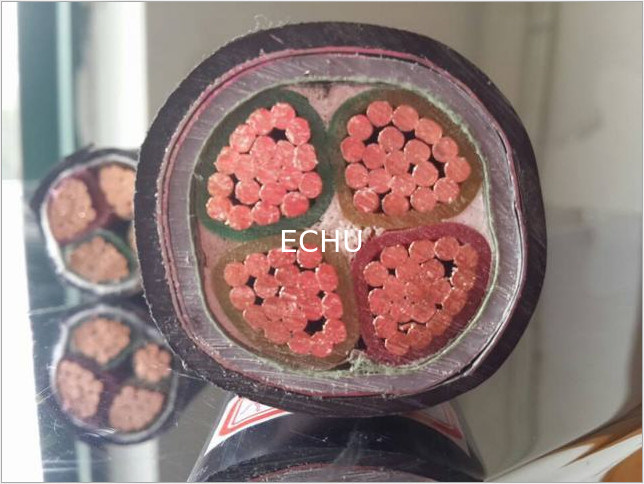

0.6/1KV Copper core PVC insulated PVC sheathed power cable (YJV 3x185+1x95)

Certification
Good quality Solar PV Cable for sales
Good quality Solar PV Cable for sales
I'm Online Chat Now

0.6/1KV Copper core PVC insulated PVC sheathed power cable (YJV 3x185+1x95)

China 0.6/1KV Copper core PVC insulated PVC sheathed power cable (YJV 3x185+1x95) supplier

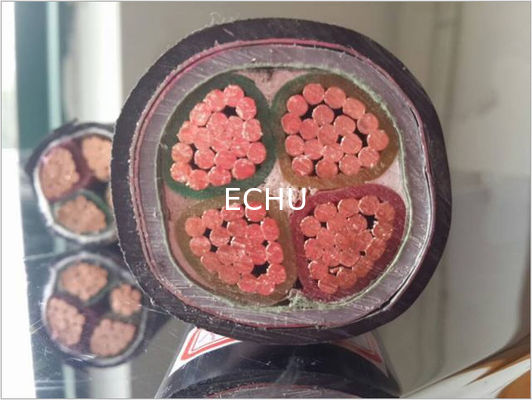

Large Image :  0.6/1KV Copper core PVC insulated PVC sheathed power cable (YJV 3x185+1x95)

Product Details:

Place of Origin: China
Brand Name: ECHU
Model Number: YJV

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD0.1-USD0.8
Packaging Details: Splint reel
Delivery Time: 7 to 10days after receiving payment
Payment Terms: T/T
Detailed Product Description
Conductor: Copper Insulation: XLPE
Jacket: PVC Voltage: 0.6/1JV

Implementation of the standards:

1) This product is designed and manufactured according to GB/T12706-2002
2) flame retardant power cable accordance with the standards of production enterprises, flame retardant characteristics meet the requirements GB/T18380.3
3) fire-resistant power cables manufactured according to corporate standards, including fire-resistant characteristics meet GB/T12666.6 requirements

Characteristic:

1) Long-term allowable working temperature of cable conductor does not exceed 70C. Circuit is blocked (the longest duration fo no more than 5 seconds), The conductor temperature does not exceed 160C

2) While installation the ambient temperature should not be less than 0C, lower than 0C should be preheated. Minimum bending radius of not less than the cable diameter, single core cables without armor 20 times, there with armor cable 15 times. Three core cable without armour 15times, there with armor cable 12 times

3) DC resistance of conductor shall comply with the provisions of GB/T3956
4) Power frequency withstand voltage test: 3.5KV/5min without breakdown
Main use:
This product is suitable for AC rated voltage 0.6/1KV the circuit, Transmission of electrical energy used, Flame retardant power cable is suitable installed in fire-retardant demanding situations. Resistant power cable for high-rise buildings, shopping malls and other densely populated areas.

Retardant performance:
1) Retardant cable can withstand GB/T18380.3 prescribd bunched burning test
2) Smoke density in accordance with the requirements of GB/T17651.1
3) Combustion gases precipitated HCL content should be </= 100mg/g
4) Resistant cable can withstand GBA/T12666.6 fire test requirement


0.6/1KV Copper core PVC insulated PVC sheathed power cable (YJV 3x185+1x95)

No. Type Size OD
mm
Weight
KG/KM
1 YJV 1×1.5 5.6 45
2 YJV 1×2.5 6.0 58
3 YJV 1×4 6.5 75
4 YJV 1×6 7.0 97
5 YJV 1×10 8.1 142
6 YJV 1×16 9.1 204
7 YJV 1×25 10.8 302
8 YJV 1×35 11.8 401
9 YJV 1×50 13.0 550
10 YJV 1×70 14.9 749
11 YJV 1×95 16.8 997
12 YJV 1×120 18.3 1241
13 YJV 1×150 20.5 1546
14 YJV 1×185 22.8 1904
15 YJV 1×240 25.3 2444
16 YJV 1×300 28.0 3017
17 YJV 1×400 31.6 3995
18 YJV 2×1.5 9.6 100
19 YJV 2×2.5 10.4 127
20 YJV 2×4 11.3 166
21 YJV 2×6 12.3 215
22 YJV 2×10 14.6 318
23 YJV 2×16 16.6 455
24 YJV 2×25 20.0 679
25 YJV 2×35 22.0 781
26 YJV 2×50 18.9 1083
27 YJV 2×70 21.9 1477
28 YJV 2×95 24.1 1975
29 YJV 2×120 26.7 2473
30 YJV 2×150 29.7 3080
31 YJV 2×185 33.1 3790
32 YJV 2×240 42.2 4896
33 YJV 2×300 47.2 6084
34 YJV 2×400 54.6 8038
35 YJV 3×1.5 10.0 119
36 YJV 3×2.5 10.8 157
37 YJV 3×4 11.9 210
38 YJV 3×6 13.0 278
39 YJV 3×10 15.4 418
40 YJV 3×16 17.6 611
41 YJV 3×25 21.2 920
42 YJV 3×35 23.4 1229
43 YJV 3×50 23.8 1588
44 YJV 3×70 27.3 2185
45 YJV 3×95 30.8 2911
46 YJV 3×120 34.0 3648
47 YJV 3×150 37.6 4583
48 YJV 3×185 41.9 5641
49 YJV 3×240 46.9 7255
50 YJV 3×300 51.6 9011
51 YJV 3×400 57.9 11940
52 YJV 4×1.5 10.7 143
53 YJV 4×2.5 11.7 191
54 YJV 4×4 12.8 260
55 YJV 4×6 14.0 348
56 YJV 4×10 16.8 530
57 YJV 4×16 19.2 781
58 YJV 4×25 23.3 1183
59 YJV 4×35 25.7 1507
60 YJV 4×50 25.7 2103
61 YJV 4×70 29.8 2895
62 YJV 4×95 33.7 3871
63 YJV 4×120 37.4 4868
64 YJV 4×150 41.2 6070
65 YJV 4×185 46.0 7486
66 YJV 4×240 51.4 9637
67 YJV 4×300 56.6 11969
68 YJV 4×400 63.5 15853
69 YJV 5×1.5 11.5 169
70 YJV 5×2.5 12.6 228
71 YJV 5×4 13.9 312
72 YJV 5×6 15.2 421
73 YJV 5×10 18.3 646
74 YJV 5×16 21.0 957
75 YJV 5×25 25.6 1455
76 YJV 5×35 28.5 1959
77 YJV 5×50 26.8 2617
78 YJV 5×70 31.1 3605
79 YJV 5×95 35.0 4838
80 YJV 5×120 38.9 6062
81 YJV 5×150 43.0 7576
82 YJV 5×185 47.9 9345
83 YJV 5×240 53.7 12017
84 YJV 5×300 59.2 14930
85 YJV 5×400 66.0 19799
86 YJV 3×1.5+1×1.0 10.8 160
87 YJV 3×2.5+1×1.5 11.5 180
88 YJV 3×4+1×2.5 12.6 244
89 YJV 3×6+1×4 13.7 327
90 YJV 3×10+1×6 16.1 487
91 YJV 3×16+1×10 18.5 721
92 YJV 3×25+1×16 21.7 1088
93 YJV 3×35+1×16 23.4 1396
94 YJV 3×50+1×25 25.7 1849
95 YJV 3×70+1×35 29.6 2541
96 YJV 3×95+1×50 32.7 3423
97 YJV 3×120+1×70 36.3 4374
98 YJV 3×150+1×70 40.0 5286
99 YJV 3×185+1×95 44.5 6592
100 YJV 3×240+1×120 49.7 8459
101 YJV 3×300+1×150 54.6 10513
102 YJV 3×400+1×185 61.5 13764
103 YJV 3×1.5+2×1.0 11.8 161
104 YJV 3×2.5+2×1.5 12.2 205
105 YJV 3×4+2×2.5 13.5 280
106 YJV 3×6+2×4 14.7 380
107 YJV 3×10+2×6 17.1 561
108 YJV 3×16+2×10 19.8 838
109 YJV 3×25+2×16 23.3 1267
110 YJV 3×35+2×16 25.0 1577
111 YJV 3×50+2×25 27.4 2135
112 YJV 3×70+2×35 30.8 2930
113 YJV 3×95+2×50 35.2 3982
114 YJV 3×120+2×70 39.0 5112
115 YJV 3×150+2×70 42.7 6034
116 YJV 3×185+2×95 47.5 7589
117 YJV 3×240+2×120 63.8 9701
118 YJV 3×300+2×150 70.4 12064
119 YJV 3×400+2×185 78.0 15673
120 YJV 4×1.5+1×1.0 11.8 161
121 YJV 4×2.5+11.5 12.4 216
122 YJV 4×4+1×2.5 13.7 296
123 YJV 4×6+1×4 14.9 400
124 YJV 4×10+1×6 17.7 603
125 YJV 4×16+1×10 20.3 898
126 YJV 4×25+1×16 24.0 1361
127 YJV 4×35+1×16 26.2 1768
128 YJV 4×50+1×25 28.4 2370
129 YJV 4×70+1×35 32.2 3275
130 YJV 4×95+1×50 37.0 4402
131 YJV 4×120+1×70 40.8 5596
132 YJV 4×150+1×70 46.1 6805
133 YJV 4×185+1×95 51.2 8467
134 YJV 4×240+1×120 68.2 10859
135 YJV 4×300+1×150 70.4 13497
136 YJV 4×400+1×185 78.0 17736
